Face Cutter

ASX400_INCH
(GENERAL CUTTING)

ASX400R0512E EDP:198791

Product Information

  • Economical due to the use of 4 cutting edges.
  • Low resistance due to the 3D designed of the curved cutting edge.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock

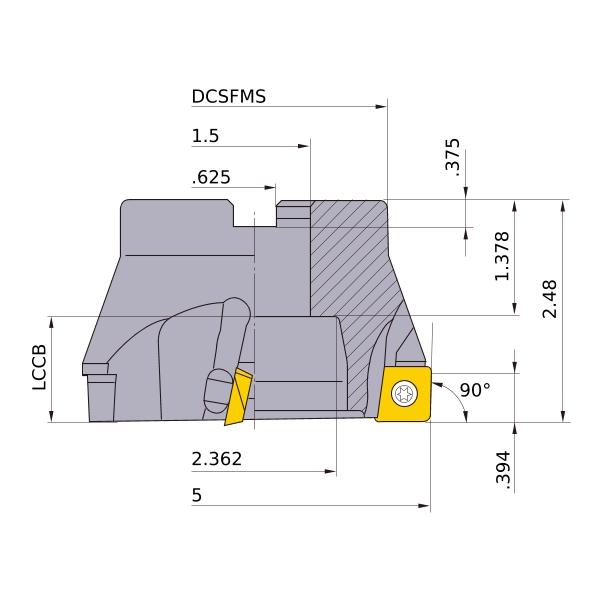

Unit of Length I
DC 5
DCON 1.5
DCCB 2.362
KAPR 90°
L8 .375
LF 2.48
CBDP 1.378
KWW .625
APMX .394
GAMP +11°
GAMF -9°
WT 5.5
Peripheral effective cutting edge count: ZEFP 12
RPMX 12000
2D Model (DXF)
CAD data name Download
ASX400R0512E
CAD

3D Detail Model (STP,STL)
CAD data name Download
ASX400R0512E
CAD

3D Light Model (STP,STL)
CAD data name RE Download
ASX400R0512E_IR0_031
.031 CAD CAD
ASX400R0512E_IR0_079
.079 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
