Face Cutter

ASX400_INCH
（GENERAL CUTTING）

ASX400R0615E EDP:198803

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
ASX400
  • Low resistance due to the 3D designed of the curved cutting edge.
  • Curved cutting edge and high rigidity holder
  • High rigidity holder.
  • Economical due to the use of 4 cutting edges.
ASX400_MM
  • High rigidity holder.
  • Economical due to the use of 4 cutting edges.
  • Low resistance due to the 3D designed of the curved cutting edge.
  • Curved cutting edge and high rigidity holder

Product Information

  • Economical due to the use of 4 cutting edges.
  • Low resistance due to the 3D designed of the curved cutting edge.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DC 6
DCON 1.5

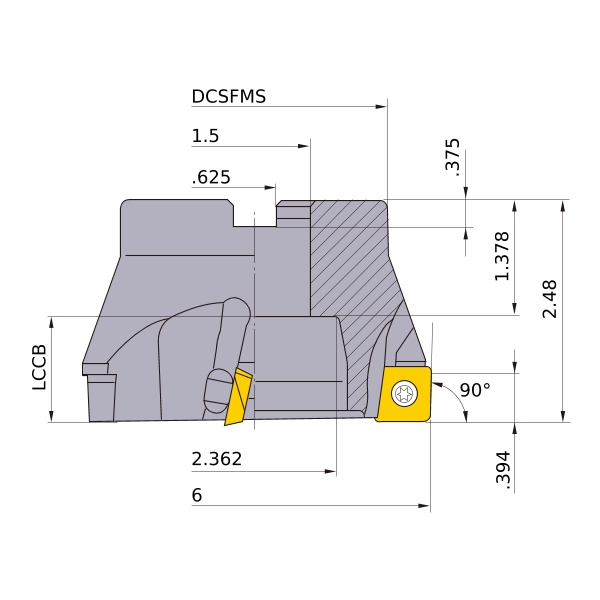

DCCB 2.362
KAPR 90°
L8 .375
LF 2.48
CBDP 1.378
KWW .625
APMX .394
GAMP +11°
GAMF -9°
WT 8.8
Peripheral effective cutting edge count: ZEFP 15
RPMX 10000
2D Model (DXF)
CAD data name Download
ASX400R0615E
