Face Cutter

ASX400_INCH
(GENERAL CUTTING)

ASX400R0816M EDP:198731

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
ASX400
  • Low resistance due to the 3D designed of the curved cutting edge.
  • Curved cutting edge and high rigidity holder
  • High rigidity holder.
  • Economical due to the use of 4 cutting edges.
ASX400_MM
  • High rigidity holder.
  • Economical due to the use of 4 cutting edges.
  • Low resistance due to the 3D designed of the curved cutting edge.
  • Curved cutting edge and high rigidity holder

Product Information

  • Economical due to the use of 4 cutting edges.
  • Low resistance due to the 3D designed of the curved cutting edge.

The actual product may differ from the displayed image.

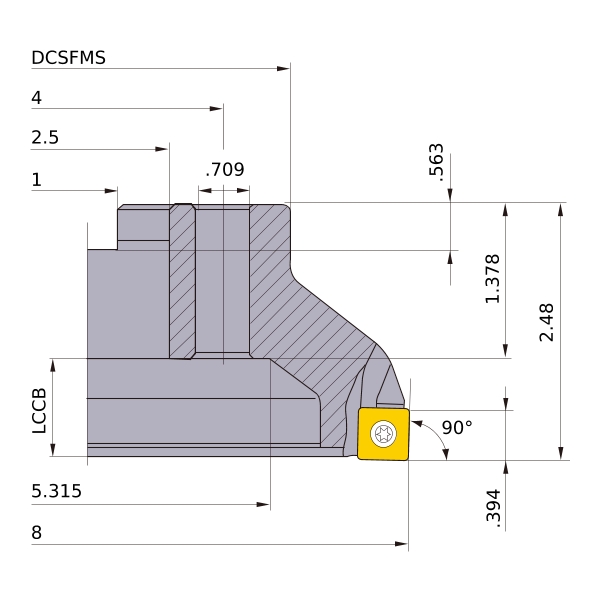

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I
DC 8
DCON 2.5
DAH .709
DCCB 5.315
KAPR 90°
L8 .563
LF 2.48
CBDP 1.378
KWW 1
APMX .394
GAMP +11°
GAMF -9°
WT 15
DBC 4
Peripheral effective cutting edge count: ZEFP 16
RPMX 9000
2D Model (DXF)
CAD data name Download
ASX400R0816M
CAD

3D Detail Model (STP,STL)
CAD data name Download
ASX400R0816M
CAD

3D Light Model (STP,STL)
CAD data name RE Download
ASX400R0816M_IR0_031
.031 CAD CAD
ASX400R0816M_IR0_079
.079 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
