Face Cutter

ASX400_INCH
(GENERAL CUTTING)

ASX400R2504 EDP:198601

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
ASX400
  • Low resistance due to the 3D designed of the curved cutting edge.
  • Curved cutting edge and high rigidity holder
  • High rigidity holder.
  • Economical due to the use of 4 cutting edges.
ASX400_MM
  • High rigidity holder.
  • Economical due to the use of 4 cutting edges.
  • Low resistance due to the 3D designed of the curved cutting edge.
  • Curved cutting edge and high rigidity holder

Product Information

  • Economical due to the use of 4 cutting edges.
  • Low resistance due to the 3D designed of the curved cutting edge.

The actual product may differ from the displayed image.

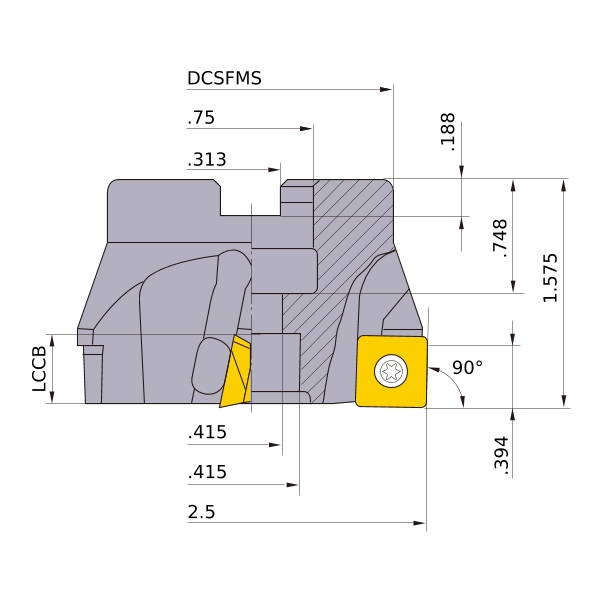

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I
DC 2.5
DCON .75
DAH .415
DCCB .415
KAPR 90°
L8 .188
LF 1.575
CBDP .748
KWW .313
APMX .394
GAMP +11°
GAMF -10°
WT 1.1
Peripheral effective cutting edge count: ZEFP 4
RPMX 16000
2D Model (DXF)
CAD data name Download
ASX400R2504
CAD

3D Detail Model (STP,STL)
CAD data name Download
ASX400R2504
CAD

3D Light Model (STP,STL)
CAD data name RE Download
ASX400R2504_IR0_031
.031 CAD CAD
ASX400R2504_IR0_079
.079 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
