Face Cutter

ASX445_INCH
(GENERAL CUTTING)

ASX445R0508E EDP:156224

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
ASX445
  • High rigidity due to employment of a carbide shim.
  • Screw-on type.
  • A wide range of chip breakers.
  • Precise but inexpensive molded type 20° positive insert.
ASX445_MM
  • Precise but inexpensive molded type 20° positive insert.
  • Screw-on type.
  • A wide range of chip breakers.
  • High rigidity due to employment of a carbide shim.

Product Information

  • A wide range of chip breakers.
  • Screw-on type.

The actual product may differ from the displayed image.

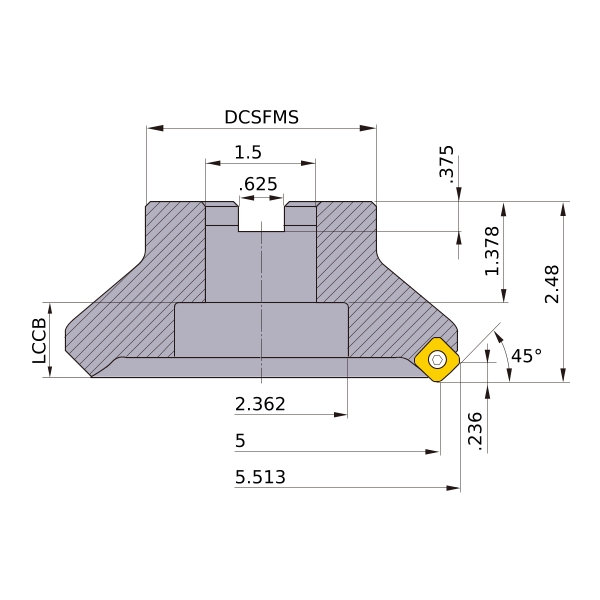

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I
DC 5
DCX 5.513
DCON 1.5
DAH 2.362
DCCB 2.362
KAPR 45°
L8 .375
LF 2.48
CBDP 1.378
KWW .625
APMX .236
GAMP +23°
GAMF -10°
WT 6.2
Peripheral effective cutting edge count: ZEFP 8
RPMX 12000
2D Model (DXF)
CAD data name Download
ASX445R0508E
CAD

3D Detail Model (STP,STL)
CAD data name Download
ASX445R0508E
CAD

3D Light Model (STP,STL)
CAD data name RE Download
ASX445R0508E_IR0_059
.059 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
