Face Cutter

ASX445_INCH
（GENERAL CUTTING）

ASX445R1024M EDP:175468

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
ASX445
  • High rigidity due to employment of a carbide shim.
  • Screw-on type.
  • A wide range of chip breakers.
  • Precise but inexpensive molded type 20° positive insert.
ASX445_MM
  • Precise but inexpensive molded type 20° positive insert.
  • Screw-on type.
  • A wide range of chip breakers.
  • High rigidity due to employment of a carbide shim.

Product Information

  • A wide range of chip breakers.
  • Screw-on type.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

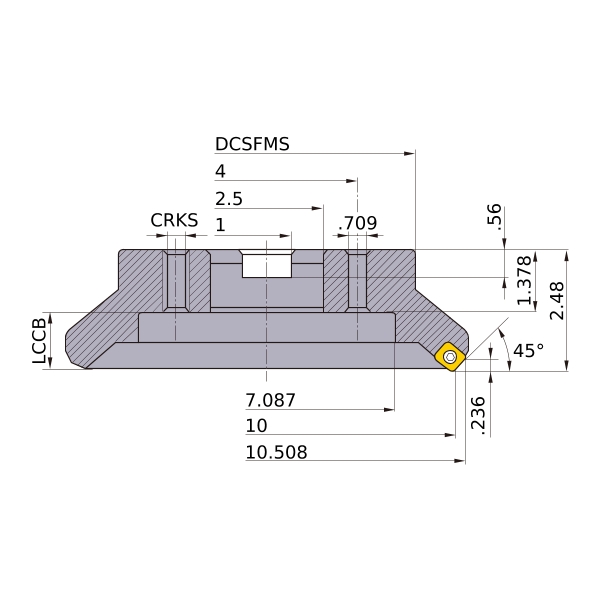

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DC 10
DCX 10.508
DCON 2.5
DAH .709
DCCB 7.087
KAPR 45°
L8 .56
LF 2.48
CBDP 1.378
KWW 1
APMX .236
GAMP +23°
GAMF -10°
WT 23.7
DBC 4
Peripheral effective cutting edge count: ZEFP 24
RPMX 8000
2D Model (DXF)
CAD data name Download
ASX445R1024M
