Face Cutter >BRP_INCH >BRP6UPR0306C

Face Cutter

BRP6_INCH


BRP6UPR0306C EDP:126720

Product Information

  • Round shape insert gives strong cutting edge.
  • Multi functional milling.
  • Suitable for roughing of molds and dies.
  • 11°positive insert.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock

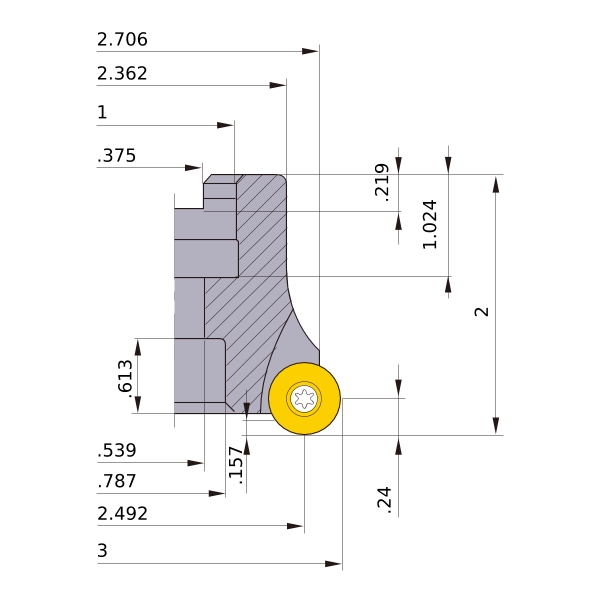

Unit of Length I
AZ .157
DC 2.492
DCX 3
DCON 1
BD 2.706
DCSFMS 2.362
DAH .539
DCCB .787
L8 .219
LF 2
CBDP 1.024
LCCB .613
KWW .375
APMX .24
GAMP +5°
GAMF 0°
Peripheral effective cutting edge count: ZEFP 6
