Face Cutter

BXD4000_INCH
(ALUMINUM ALLOY FOR DIFFICULT-TO-CUT MATERIAL CUTTING)

BXD4000R0305 EDP:228013

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
BXD4000
  • The Anti Fly Insert mechanism guarantees secure high-revolution milling.
  • Low resistance insert and high rigidity body.
  • Air coolant through.
BXD4000_MM
  • The Anti Fly Insert mechanism guarantees secure high-revolution milling.
  • Low resistance insert and high rigidity body.
  • Air coolant through.

Product Information

  • Low resistance insert and high rigidity body.
  • The Anti Fly Insert mechanism guarantees secure high-revolution milling.
  • Air coolant through.

The actual product may differ from the displayed image.

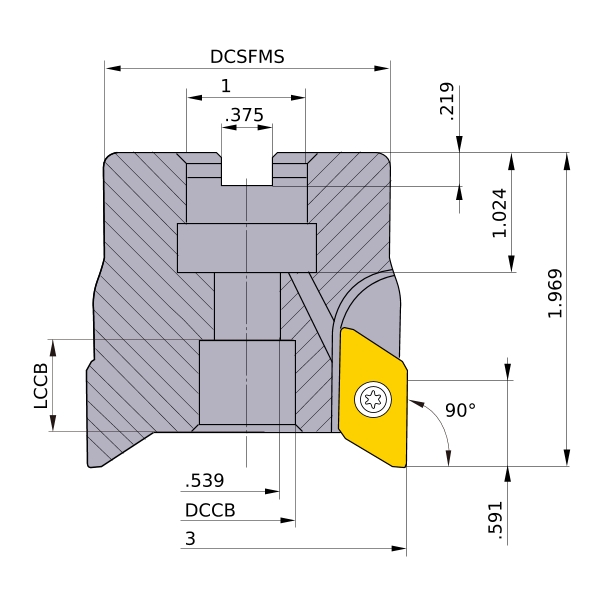

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I
DC 3
DCON 1
DAH .539
KAPR 90°
RMPX 3
L8 .219
LF 1.969
CBDP 1.024
KWW .375
APMX .591
GAMP +15°
GAMF +15°
Peripheral effective cutting edge count: ZEFP 5
RPMX 19000
2D Model (DXF)
CAD data name Download
BXD4000R0305
CAD

3D Detail Model (STP,STL)
CAD data name Download
BXD4000R0305
CAD

3D Light Model (STP,STL)
CAD data name RE Download
BXD4000R0305_IR0_016
.016 CAD CAD
BXD4000R0305_IR0_031
.031 CAD CAD
BXD4000R0305_IR0_047
.047 CAD CAD
BXD4000R0305_IR0_063
.063 CAD CAD
BXD4000R0305_IR0_079
.079 CAD CAD
BXD4000R0305_IR0_118
.118 CAD CAD
BXD4000R0305_IR0_125
.125 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
