Face Cutter >APX4000_INCH >APX4000UR0204B

Face Cutter

APX4000_INCH


APX4000UR0204B EDP:517763

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
APX4000
  • High accuracy, high quality vertical wall.
  • Air coolant through.
APX4000_MM
  • High accuracy, high quality vertical wall.
  • Air coolant through.

Product Information

  • High accuracy, high quality vertical wall.
  • Air coolant through.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I

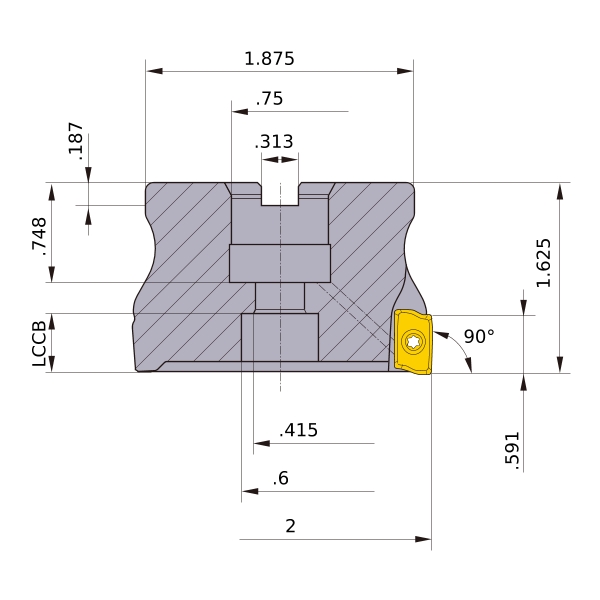

DC 2
DCON .75
DCSFMS 1.875
DAH .415
DCCB .6
KAPR 90°
RMPX 4
L8 .187
LF 1.625
CBDP .748
KWW .313
APMX .591
GAMP +21°
GAMF +25°
Peripheral effective cutting edge count: ZEFP 4
2D Model (DXF)
CAD data name Download
APX4000UR0204B
CAD
Disclaimer
