Face Cutter >APX4000_INCH >APX4000UR0306DB

Face Cutter

APX4000_INCH


APX4000UR0306DB EDP:517798

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
APX4000
  • High accuracy, high quality vertical wall.
  • Air coolant through.
APX4000_MM
  • High accuracy, high quality vertical wall.
  • Air coolant through.

Product Information

  • High accuracy, high quality vertical wall.
  • Air coolant through.

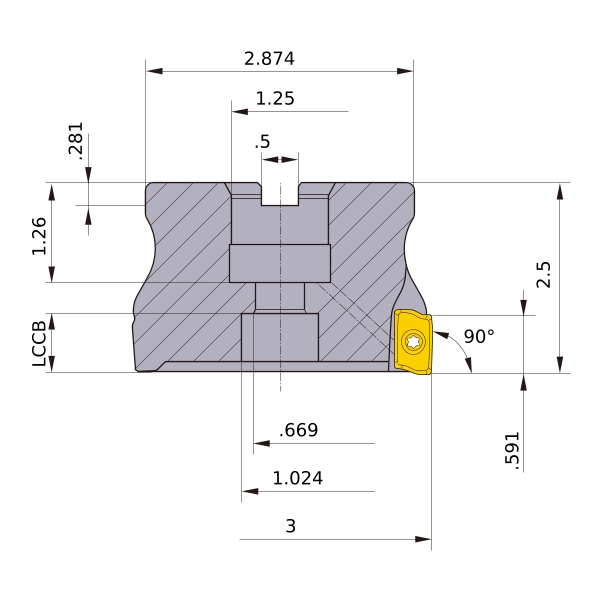

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DC 3
DCON 1.25
DCSFMS 2.874
DAH .669
DCCB 1.024
KAPR 90°
RMPX 2
L8 .281
LF 2.5
CBDP 1.26
KWW .5
APMX .591
GAMP +22°
GAMF +26°
Peripheral effective cutting edge count: ZEFP 6
