Face Cutter >AXD7000_INCH >AXD7000UR0506EA

Face Cutter

AXD7000_INCH
（For Aluminum Alloy）

AXD7000UR0506EA EDP:549061

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
AXD7000
  • Low resistance inserts.
  • High spindle speeds possible.
  • Excellent wall accuracy.
  • Multi functional milling.
AXD7000_MM
  • Multi functional milling.
  • High spindle speeds possible.
  • Low resistance inserts.
  • Excellent wall accuracy.

Product Information

  • Excellent wall accuracy.
  • Multi functional milling.
  • Low resistance inserts.
  • High spindle speeds possible.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

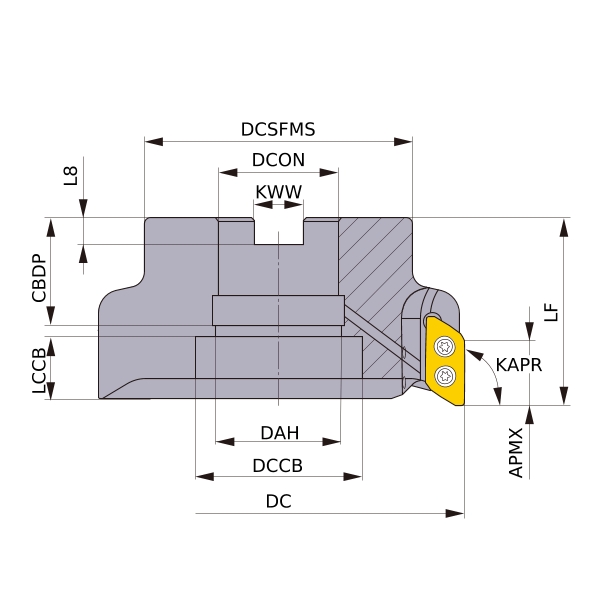

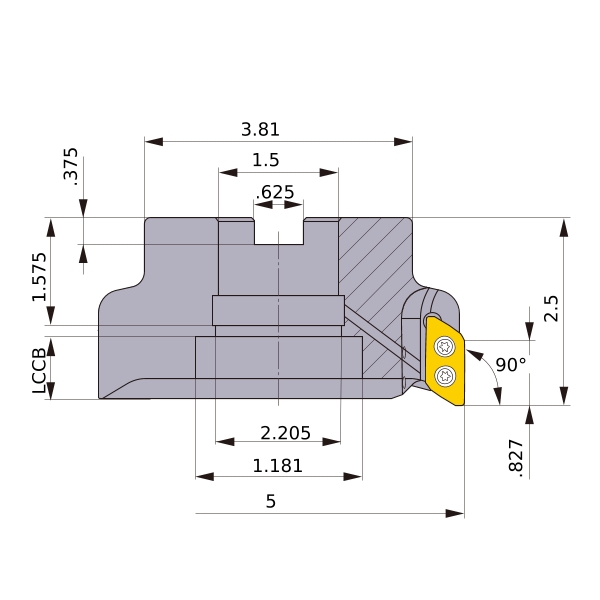

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DC 5
DCON 1.5
DCSFMS 3.81
DAH 2.205
DCCB 1.181
KAPR 90°
RMPX 3
L8 .375
LF 2.5
CBDP 1.575
KWW .625
APMX .827
GAMP +11°
GAMF +29°
WT 6.6
Peripheral effective cutting edge count: ZEFP 6
RPMX 20000
2D Model (DXF)
CAD data name Download
AXD7000UR0506EA
CAD
