Face Cutter >AXD4000_INCH >AXD4000UR1502A

Face Cutter

AXD4000_INCH
(For Aluminum Alloy)

AXD4000UR1502A EDP:569256

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
AXD4000
  • High spindle speeds possible.
  • Low resistance inserts.
  • Multi functional milling.
  • High spindle speeds possible.
  • Excellent wall accuracy.
AXD4000A
  • Low resistance inserts.
  • Multi functional milling.
  • High spindle speeds possible.
  • Excellent wall accuracy.
AXD4000_MM
  • High spindle speeds possible.
  • Low resistance inserts.
  • Multi functional milling.
  • High spindle speeds possible.
  • Excellent wall accuracy.

Product Information

  • High spindle speeds possible.
  • Low resistance inserts.
  • Multi functional milling.
  • High spindle speeds possible.
  • Excellent wall accuracy.

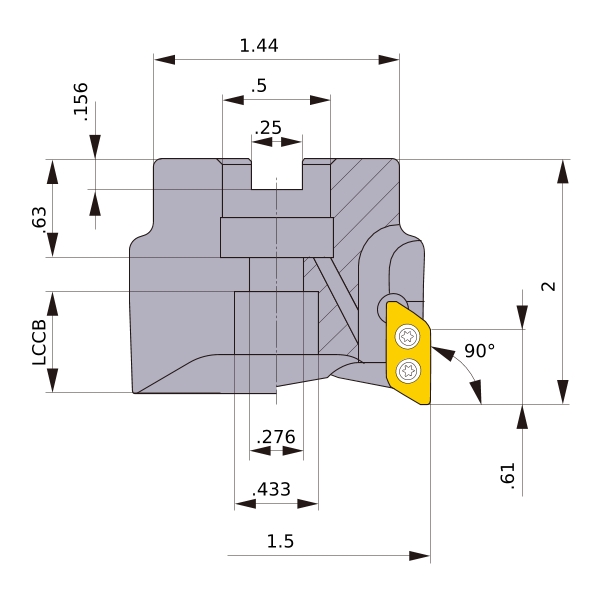

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I
DC 1.5
DCON .5
DCSFMS 1.44
DAH .276
DCCB .433
KAPR 90°
L8 .156
LF 2
CBDP .63
KWW .25
APMX .61
GAMP +14°
GAMF +21°
WT 0.6
Peripheral effective cutting edge count: ZEFP 2
RPMX 41000
2D Model (DXF)
CAD data name Download
AXD4000UR1502A
CAD

3D Detail Model (STP,STL)
CAD data name Download
AXD4000UR1502A
CAD

3D Light Model (STP,STL)
CAD data name RE Download
AXD4000UR1502A_IR0_016
.016 CAD CAD
AXD4000UR1502A_IR0_031
.031 CAD CAD
AXD4000UR1502A_IR0_047
.047 CAD CAD
AXD4000UR1502A_IR0_063
.063 CAD CAD
AXD4000UR1502A_IR0_079
.079 CAD CAD
AXD4000UR1502A_IR0_094
.094 CAD CAD
AXD4000UR1502A_IR0_118
.118 CAD CAD
AXD4000UR1502A_IR0_125
.125 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
