Face Cutter >AXD4000_INCH >AXD4000UR0305DA

Face Cutter

AXD4000_INCH
（For Aluminum Alloy）

AXD4000UR0305DA EDP:569328

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
AXD4000
  • High spindle speeds possible.
  • Low resistance inserts.
  • Multi functional milling.
  • High spindle speeds possible.
  • Excellent wall accuracy.
AXD4000A
  • Low resistance inserts.
  • Multi functional milling.
  • High spindle speeds possible.
  • Excellent wall accuracy.
AXD4000_MM
  • High spindle speeds possible.
  • Low resistance inserts.
  • Multi functional milling.
  • High spindle speeds possible.
  • Excellent wall accuracy.

Product Information

  • High spindle speeds possible.
  • Low resistance inserts.
  • Multi functional milling.
  • High spindle speeds possible.
  • Excellent wall accuracy.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

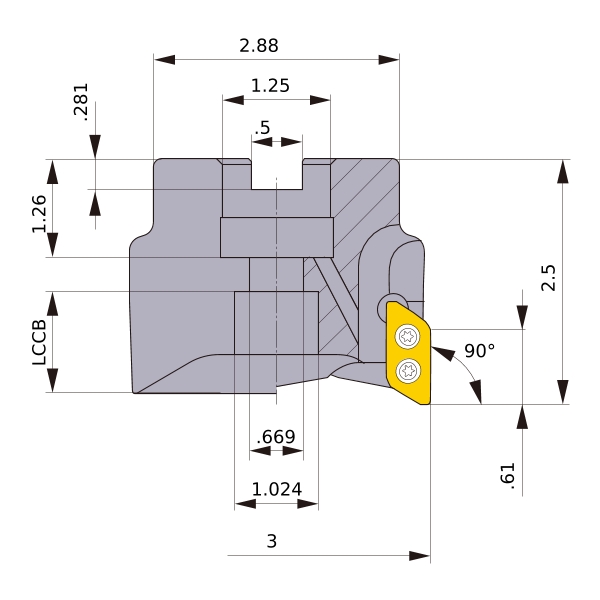

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DC 3
DCON 1.25
DCSFMS 2.88
DAH .669
DCCB 1.024
KAPR 90°
L8 .281
LF 2.5
CBDP 1.26
KWW .5
APMX .61
GAMP +15°
GAMF +25°
WT 2.9
Peripheral effective cutting edge count: ZEFP 5
RPMX 27000
2D Model (DXF)
CAD data name Download
AXD4000UR0305DA
CAD
