Face Cutter >AXD4000_INCH >AXD4000UR0507EA

Face Cutter

AXD4000_INCH
（For Aluminum Alloy）

AXD4000UR0507EA EDP:569361

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
AXD4000
  • High spindle speeds possible.
  • Low resistance inserts.
  • Multi functional milling.
  • High spindle speeds possible.
  • Excellent wall accuracy.
AXD4000A
  • Low resistance inserts.
  • Multi functional milling.
  • High spindle speeds possible.
  • Excellent wall accuracy.
AXD4000_MM
  • High spindle speeds possible.
  • Low resistance inserts.
  • Multi functional milling.
  • High spindle speeds possible.
  • Excellent wall accuracy.

Product Information

  • High spindle speeds possible.
  • Low resistance inserts.
  • Multi functional milling.
  • High spindle speeds possible.
  • Excellent wall accuracy.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

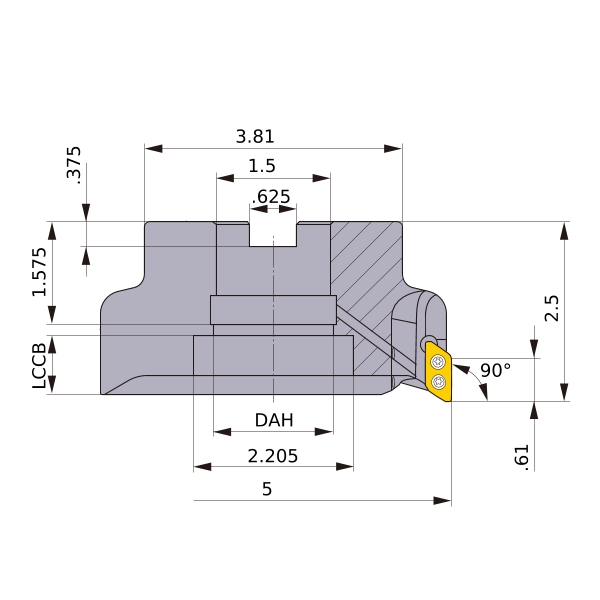

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DC 5
DCON 1.5
DCSFMS 3.81
DCCB 2.205
KAPR 90°
L8 .375
LF 2.5
CBDP 1.575
KWW .625
APMX .61
GAMP +15°
GAMF +26°
WT 6.7
Peripheral effective cutting edge count: ZEFP 7
