Face Cutter >AXD4000_INCH >AXD4000UR0505EB
AXD4000_INCH
(For Aluminum Alloy)
Shape | Series | Tooling Sheet | Feature | Cutting Edge Angle |
---|---|---|---|---|
AXD4000 |
|
|||
AXD4000A |
|
|||
AXD4000_MM |
|

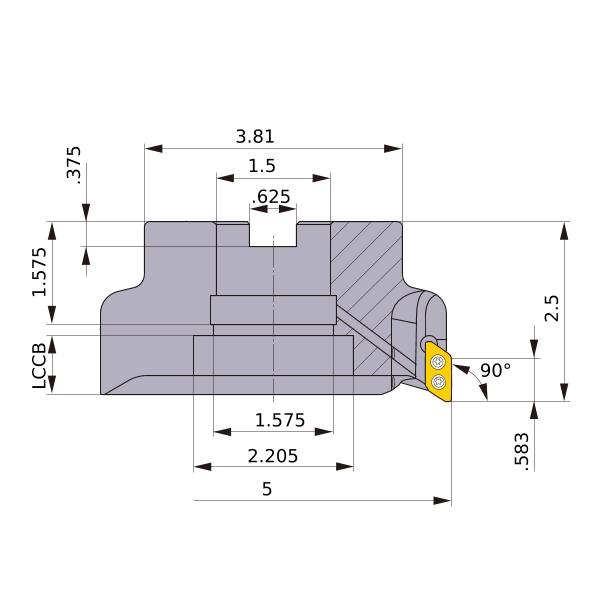

The actual product may differ from the displayed image.
For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Sales unit | 1 |
Hand | R |
Stock | |
Unit of Length | I |
DC | 5 |
DCON | 1.5 |
DCSFMS | 3.81 |
DAH | 1.575 |
DCCB | 2.205 |
KAPR | 90° |
L8 | .375 |
LF | 2.5 |
CBDP | 1.575 |
KWW | .625 |
APMX | .583 |
GAMP | +15° |
GAMF | +26° |
WT | 6.7 |
Peripheral effective cutting edge count: ZEFP | 5 |
RPMX | 20000 |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
