Face Cutter >AXD4000_INCH >AXD4000UR0303CA

Face Cutter

AXD4000_INCH
(For Aluminum Alloy)

AXD4000UR0303CA EDP:10521243

Product Information

  • High spindle speeds possible.
  • Low resistance inserts.
  • Multi functional milling.
  • High spindle speeds possible.
  • Excellent wall accuracy.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock

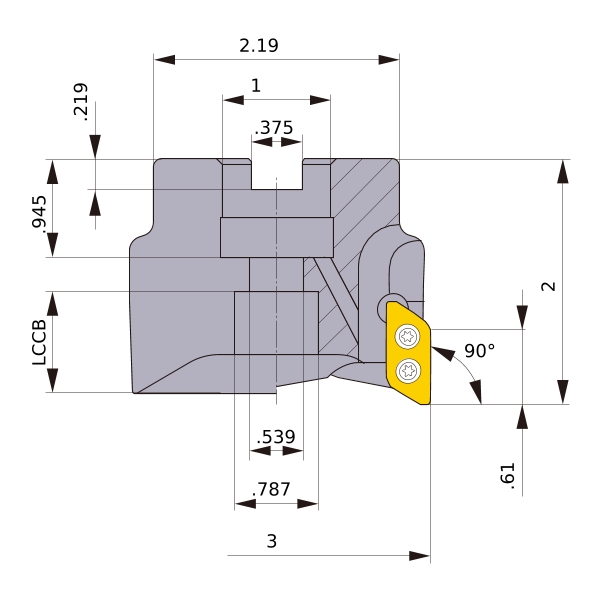

Unit of Length I
DC 3
DCON 1
DCSFMS 2.19
DAH .539
DCCB .787
KAPR 90°
L8 .219
LF 2
CBDP .945
KWW .375
APMX .61
GAMP +15°
GAMF +24°
WT 1.9
Peripheral effective cutting edge count: ZEFP 3
RPMX 27000
3D Detail Model (STP,STL)
CAD data name Download
AXD4000UR0303CA
CAD

3D Light Model (STP,STL)
CAD data name RE Download
AXD4000UR0303CA_IR0_016
.016 CAD CAD
AXD4000UR0303CA_IR0_031
.031 CAD CAD
AXD4000UR0303CA_IR0_047
.047 CAD CAD
AXD4000UR0303CA_IR0_063
.063 CAD CAD
AXD4000UR0303CA_IR0_079
.079 CAD CAD
AXD4000UR0303CA_IR0_094
.094 CAD CAD
AXD4000UR0303CA_IR0_118
.118 CAD CAD
AXD4000UR0303CA_IR0_125
.125 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
