Face Cutter >AXD4000_INCH >AXD4000UR0303CB

Face Cutter

AXD4000_INCH
（For Aluminum Alloy）

AXD4000UR0303CB EDP:10521267

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
AXD4000
  • High spindle speeds possible.
  • Low resistance inserts.
  • Multi functional milling.
  • High spindle speeds possible.
  • Excellent wall accuracy.
AXD4000A
  • Low resistance inserts.
  • Multi functional milling.
  • High spindle speeds possible.
  • Excellent wall accuracy.
AXD4000_MM
  • High spindle speeds possible.
  • Low resistance inserts.
  • Multi functional milling.
  • High spindle speeds possible.
  • Excellent wall accuracy.

Product Information

  • High spindle speeds possible.
  • Low resistance inserts.
  • Multi functional milling.
  • High spindle speeds possible.
  • Excellent wall accuracy.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

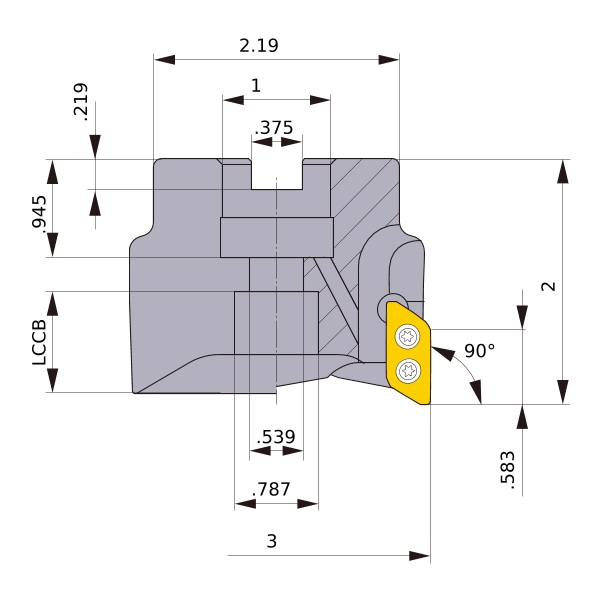

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DC 3
DCON 1
DCSFMS 2.19
DAH .539
DCCB .787
KAPR 90°
L8 .219
LF 2
CBDP .945
KWW .375
APMX .583
GAMP +15°
GAMF +24°
WT 1.9
Peripheral effective cutting edge count: ZEFP 3
RPMX 27000
3D Detail Model (STP,STL)
CAD data name Download
AXD4000UR0303CB
