Face Cutter >AXD4000_MM >AXD4000-100A06RB

Face Cutter

AXD4000_MM
（For Aluminum Alloy）

AXD4000-100A06RB EDP:578419

INCH Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
AXD4000A_INCH
  • High Rigidity Body
  • Optimal Designed Chip Pocket
  • High Reliability
  • Stable Machining
AXD4000_INCH
  • High spindle speeds possible.
  • Low resistance inserts.
  • Multi functional milling.
  • High spindle speeds possible.
  • Excellent wall accuracy.

Product Information

  • High spindle speeds possible.
  • Low resistance inserts.
  • Multi functional milling.
  • High spindle speeds possible.
  • Excellent wall accuracy.

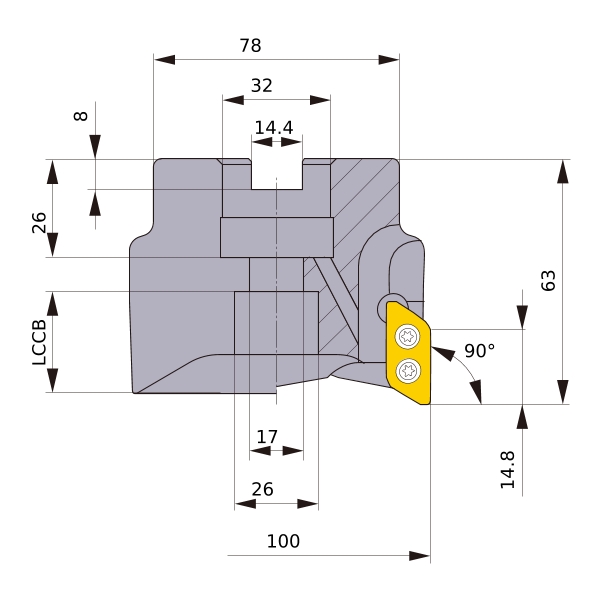

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length M
DC 100
DCON 32
DCSFMS 78
DAH 17
DCCB 26
KAPR 90°
L8 8
LF 63
CBDP 26
KWW 14.4
APMX 14.8
GAMP +15°
GAMF +25°
WT 2
Peripheral effective cutting edge count: ZEFP 6
RPMX 23000
