Face Cutter >VOX400_INCH >VOX400UR0308C

Face Cutter

VOX400_INCH
（STRONG EDGE TYPE FOR CAST IRON）

VOX400UR0308C EDP:578531

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
VOX400
  • Vertical inserts with high　strength cutting edge.
  • Economical due to the use of 8 cutting edges.
VOX400_MM
  • Economical due to the use of 8 cutting edges.
  • Vertical inserts with high　strength cutting edge.

Product Information

  • Vertical inserts with high　strength cutting edge.
  • Economical due to the use of 8 cutting edges.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DC 3
DCON 1
DCSFMS 2.19
DAH .539
DCCB .787
KAPR 90°
L8 .219
LF 2
CBDP 1.339
KWW .375
APMX .394
GAMP -6°
GAMF -18°
WT 2.2
Peripheral effective cutting edge count: ZEFP 8

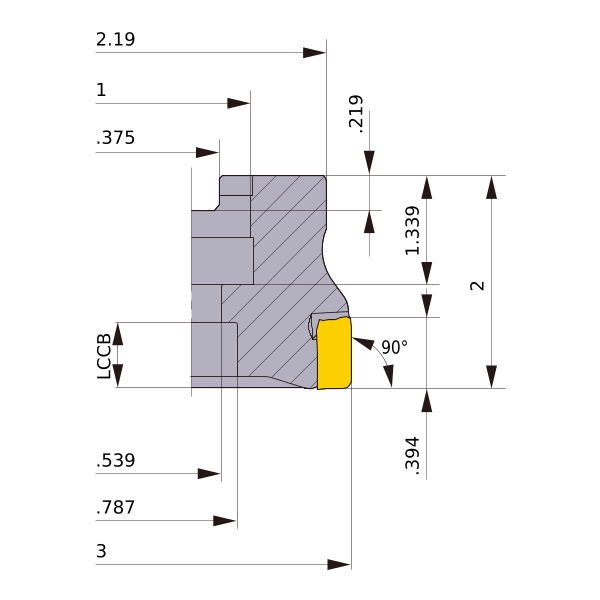

2D Model (DXF)
CAD data name Download
VOX400UR0308C
CAD
