Face Cutter >VOX400_INCH >VOX400UR0616F
VOX400_INCH
(STRONG EDGE TYPE FOR CAST IRON)
The actual product may differ from the displayed image.

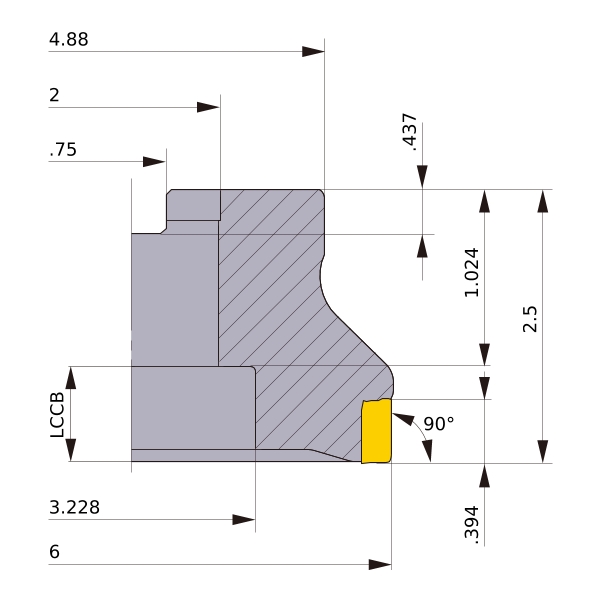

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Sales unit | 1 |
Hand | R |
Stock | ![]() |
Unit of Length | I |
DC | 6 |
DCON | 2 |
DCSFMS | 4.88 |
DCCB | 3.228 |
KAPR | 90° |
L8 | .437 |
LF | 2.5 |
CBDP | 1.024 |
KWW | .75 |
APMX | .394 |
GAMP | -6° |
GAMF | -18° |
WT | 10.2 |
Peripheral effective cutting edge count: ZEFP | 16 |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
Recommended Cutting Condition
TOOL NEWS
Insert for Rotating Tools
Spare Parts
