Face Cutter >AHX640S_INCH >AHX640SUR0304DA

Face Cutter

AHX640S_INCH
（GENERAL CUTTING）

AHX640SUR0304DA EDP:572594

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
AHX640S
  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.
AHX640S_MM
  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.

Product Information

  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock

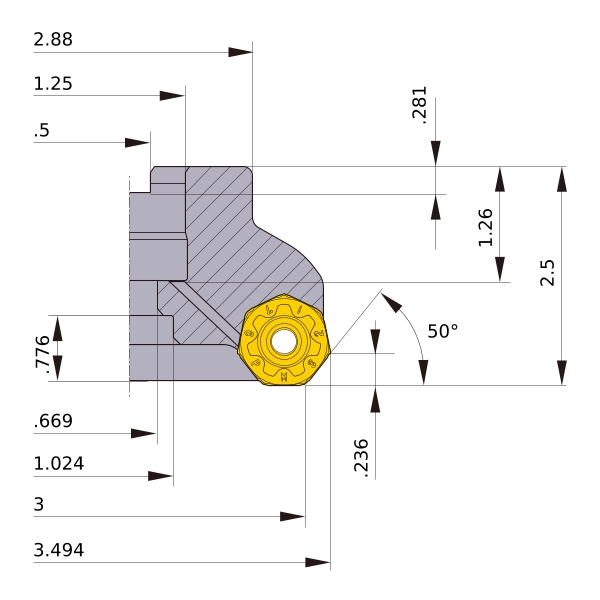

Unit of Length I
DC 3
DCX 3.494
DCON 1.25
DCSFMS 2.88
DAH .669
DCCB 1.024
KAPR 50°
L8 .281
LF 2.5
CBDP 1.26
LCCB .776
KWW .5
APMX .236
GAMP -6°
GAMF -5°
WT 3.7
Peripheral effective cutting edge count: ZEFP 4
