Face Cutter >WSX445_INCH >WSX445UR2504CA

Face Cutter

WSX445_INCH
(GENERAL CUTTING)

WSX445UR2504CA EDP:828393

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
WSX445
  • Double sided Z Geometry.
  • Smooth chip discharge.
WSX445_MM
  • Double sided Z Geometry.
  • Smooth chip discharge.

Product Information

  • Double sided Z Geometry.
  • Smooth chip discharge.

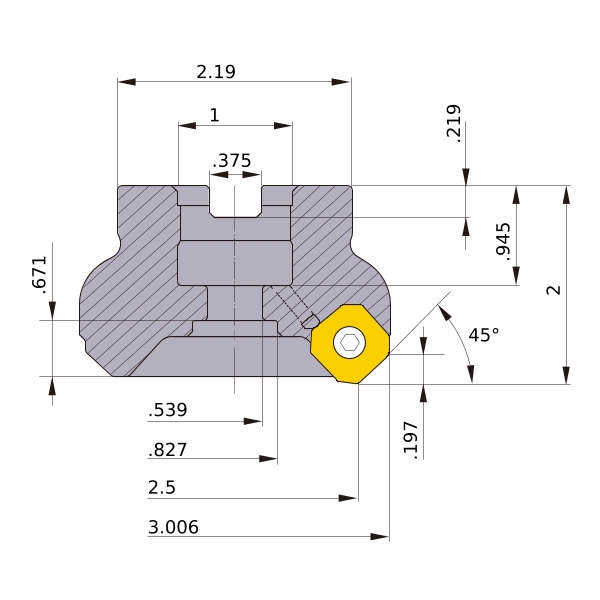

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I
DC 2.5
DCX 3.006
DCON 1
DCSFMS 2.19
DAH .539
DCCB .827
KAPR 45°
L8 .219
LF 2
CBDP .945
LCCB .671
KWW .375
APMX .197
GAMP -6°
GAMF -10°
WT 2
Peripheral effective cutting edge count: ZEFP 4
2D Model (DXF)
CAD data name Download
WSX445UR2504CA
CAD

3D Detail Model (STP,STL)
CAD data name Download
WSX445UR2504CA
CAD

3D Light Model (STP,STL)
CAD data name RE Download
WSX445UR2504CA_IR0_047
.047 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
