Face Cutter >WSX445_INCH >WSX445UR0808MN

Face Cutter

WSX445_INCH
(GENERAL CUTTING)

WSX445UR0808MN EDP:828545

METRIC Products
Shape Series Tooling Sheet Feature Corner Angle
WSX445
  • Double sided Z Geometry.
  • Smooth chip discharge.
WSX445_MM
  • Double sided Z Geometry.
  • Smooth chip discharge.

Product Information

  • Double sided Z Geometry.
  • Smooth chip discharge.

The actual product may differ from the displayed image.

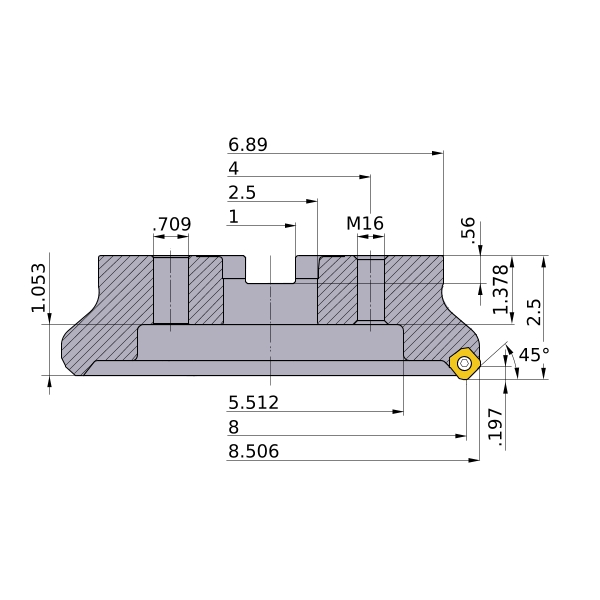

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I
DC 8
DCX 8.506
DCON 2.5
DCSFMS 6.89
DAH .709
DCCB 5.512
KAPR 45°
L8 .56
LF 2.5
CBDP 1.378
LCCB 1.053
KWW 1
APMX .197
GAMP -6°
GAMF -10°
WT 19.1
CRKS M16
DBC 4
Peripheral effective cutting edge count: ZEFP 8
2D Model (DXF)
CAD data name Download
WSX445UR0808MN
CAD

3D Detail Model (STP,STL)
CAD data name Download
WSX445UR0808MN
CAD

3D Light Model (STP,STL)
CAD data name RE Download
WSX445UR0808MN_IR0_047
.047 CAD CAD
