Face Cutter >WSX445_INCH >WSX445UR0812MN

Face Cutter

WSX445_INCH
（GENERAL CUTTING）

WSX445UR0812MN EDP:828553

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
WSX445
  • Double sided Z Geometry.
  • Smooth chip discharge.
WSX445_MM
  • Double sided Z Geometry.
  • Smooth chip discharge.

Product Information

  • Double sided Z Geometry.
  • Smooth chip discharge.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

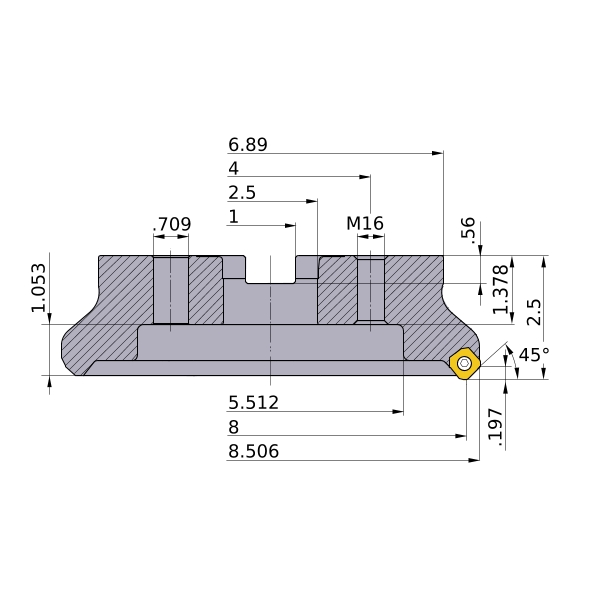

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DC 8
DCX 8.506
DCON 2.5
DCSFMS 6.89
DAH .709
DCCB 5.512
KAPR 45°
L8 .56
LF 2.5
CBDP 1.378
LCCB 1.053
KWW 1
APMX .197
GAMP -6°
GAMF -10°
WT 18.8
CRKS M16
DBC 4
Peripheral effective cutting edge count: ZEFP 12
2D Model (DXF)
CAD data name Download
WSX445UR0812MN
CAD
