Face Cutter >WSX445_INCH >WSX445UR0410EA

Face Cutter

WSX445_INCH
(GENERAL CUTTING)

WSX445UR0410EA EDP:828473

Product Information

  • Double sided Z Geometry.
  • Smooth chip discharge.

The actual product may differ from the displayed image.

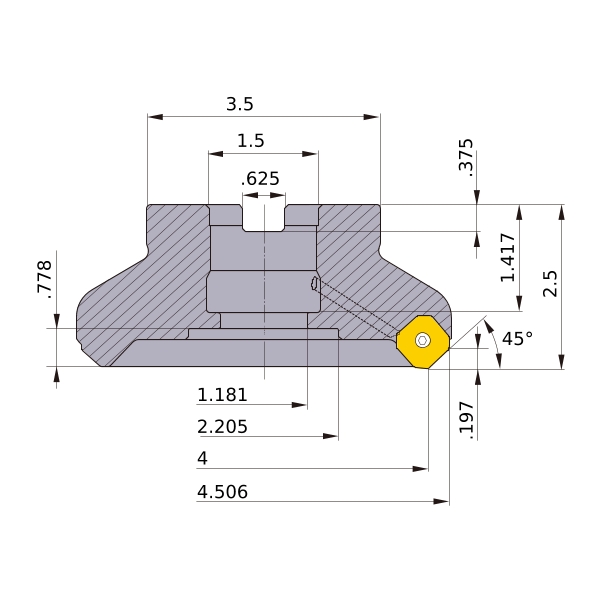

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I
DC 4
DCX 4.506
DCON 1.5
DCSFMS 3.5
DAH 1.181
DCCB 2.205
KAPR 45°
L8 .375
LF 2.5
CBDP 1.417
LCCB .778
KWW .625
APMX .197
GAMP -6°
GAMF -10°
WT 5.6
Peripheral effective cutting edge count: ZEFP 10
2D Model (DXF)
CAD data name Download
WSX445UR0410EA
CAD

3D Detail Model (STP,STL)
CAD data name Download
WSX445UR0410EA
CAD

3D Light Model (STP,STL)
CAD data name RE Download
WSX445UR0410EA_IR0_047
.047 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
