Face Cutter >WSX445_INCH >WSX445UR1014MN

Face Cutter

WSX445_INCH
（GENERAL CUTTING）

WSX445UR1014MN EDP:10614273

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
WSX445
  • Double sided Z Geometry.
  • Smooth chip discharge.
WSX445_MM
  • Double sided Z Geometry.
  • Smooth chip discharge.

Product Information

  • Double sided Z Geometry.
  • Smooth chip discharge.

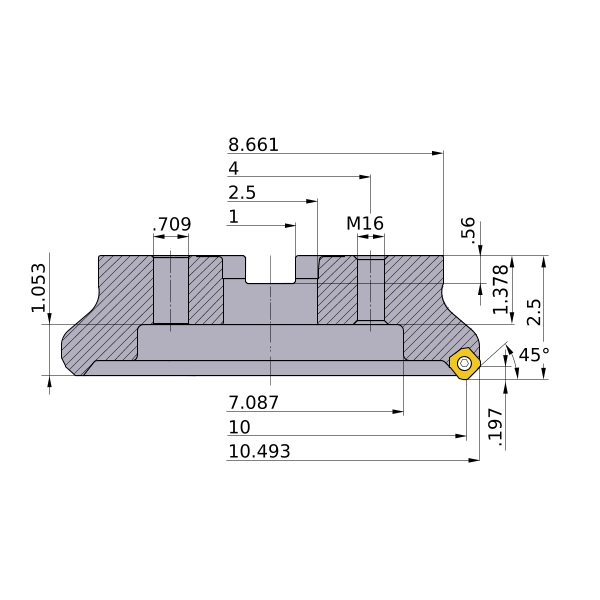

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DC 10
DCX 10.493
DCON 2.5
DCSFMS 8.661
DAH .709
DCCB 7.087
KAPR 45°
L8 .56
LF 2.5
CBDP 1.378
LCCB 1.053
KWW 1
APMX .197
GAMP -6°
GAMF -10°
WT 29.2
CRKS M16
DBC 4
Peripheral effective cutting edge count: ZEFP 14

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
