Face Cutter >WSX445_INCH >WSX445UR1214MN

Face Cutter

WSX445_INCH
(GENERAL CUTTING)

WSX445UR1214MN EDP:10614280

METRIC Products
Shape Series Tooling Sheet Feature Corner Angle
WSX445
  • Double sided Z Geometry.
  • Smooth chip discharge.
WSX445_MM
  • Double sided Z Geometry.
  • Smooth chip discharge.

Product Information

  • Double sided Z Geometry.
  • Smooth chip discharge.

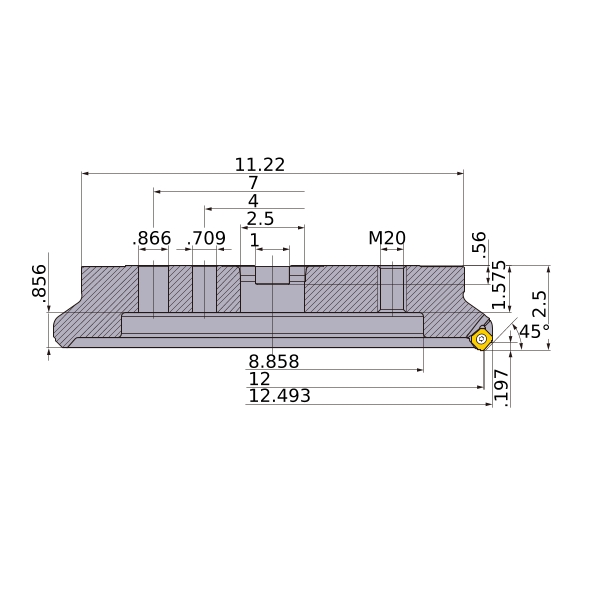

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I
DC 12
DCX 12.493
DCON 2.5
DCSFMS 11.22
DAH1 .866
DAH2 .709
DCCB 8.858
KAPR 45°
L8 .56
LF 2.5
CBDP 1.575
LCCB 8.858
KWW 1
APMX .197
GAMP -6°
GAMF -10°
WT 13.1
CRKS M20
DBC1 4
DBC2 7
Peripheral effective cutting edge count: ZEFP 14

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
