Face Cutter >FMAX >FMAXR12516E

Face Cutter

FMAX
（HIGH FEED FINISHING）

FMAXR12516E EDP:10516331

Product Information

  • Internal coolant and a special chip breaker wall (Body protector) provides ideal chip discharge performance.
  • Light Weight, High Rigidity Body
  • High precision, Easy setting

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length M

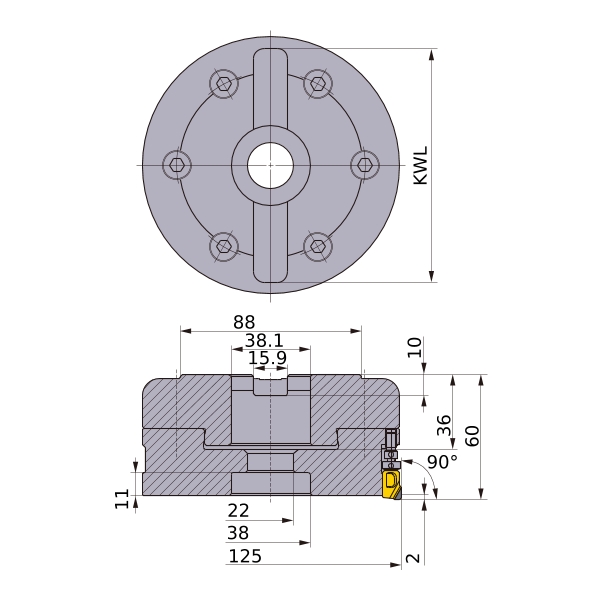

DC 125
DCON 38.1
DCSFMS 88
DAH 22
DCCB 38
KAPR 90°
L8 10
LF 60
CBDP 36
LCCB 11
KWW 15.9
APMX 2
GAMP +5°
GAMF 0°
WT 3.33
C 56
Peripheral effective cutting edge count: ZEFP 16
RPMX 19600
