Face Cutter >ARP_INCH >ARP6UPR1504SA

Face Cutter

ARP_INCH
（Round insert cutter for difficult-to-cut materials）

ARP6UPR1504SA EDP:10527313

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
ARP
  • High runout accuracy when indexing inserts.
  • Solid clamping system.
  • Standardized stock of extra fine pitch.

ARP_MM
  • High runout accuracy when indexing inserts.
  • Solid clamping system.
  • Standardized stock of extra fine pitch.


Product Information

  • High runout accuracy when indexing inserts.
  • Solid clamping system.
  • Standardized stock of extra fine pitch.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock

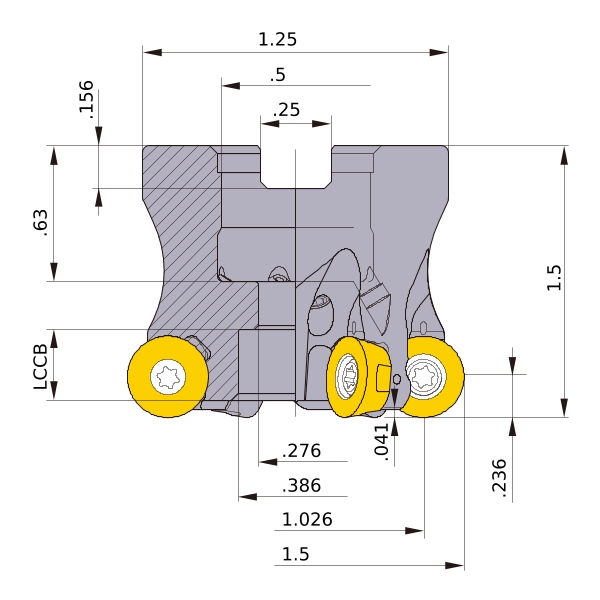

Unit of Length I
A1 .079
AZ .041
DC 1.026
DCX 1.5
DCON .5
DCSFMS 1.25
DAH .276
DCCB .386
RMPX 2.7°
L8 .156
LF 1.5
CBDP .63
KWW .25
APMX .236
GAMP +4°
GAMF -6°
WT 0.309
R 6
Peripheral effective cutting edge count: ZEFP 4
2D Model (DXF)
CAD data name Download
