Face Cutter >ARP_INCH >ARP6UPR0308CA

Face Cutter

ARP_INCH
（Round insert cutter for difficult-to-cut materials）

ARP6UPR0308CA EDP:10527368

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
ARP
  • High runout accuracy when indexing inserts.
  • Solid clamping system.
  • Standardized stock of extra fine pitch.

ARP_MM
  • High runout accuracy when indexing inserts.
  • Solid clamping system.
  • Standardized stock of extra fine pitch.


Product Information

  • High runout accuracy when indexing inserts.
  • Solid clamping system.
  • Standardized stock of extra fine pitch.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I

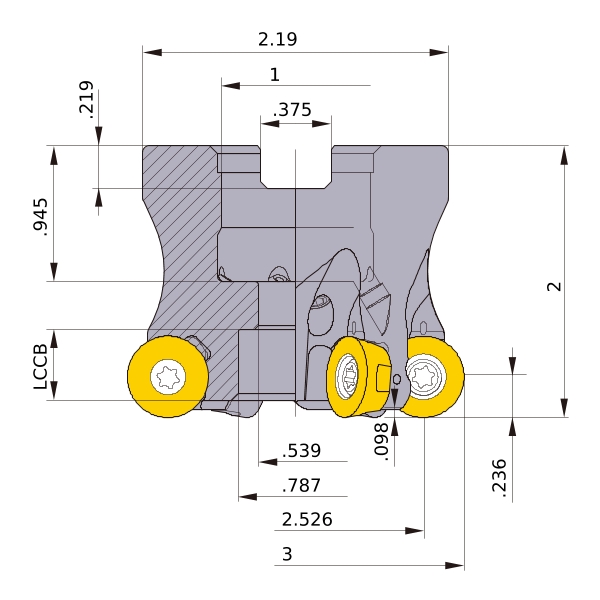

A1 .098
AZ .098
DC 2.526
DCX 3
DCON 1
DCSFMS 2.19
DAH .539
DCCB .787
RMPX 2.4°
L8 .219
LF 2
CBDP .945
KWW .375
APMX .236
GAMP +4°
GAMF -6°
WT 1.808
R 6
Peripheral effective cutting edge count: ZEFP 8
2D Model (DXF)
CAD data name Download
