Face Cutter >ARP_INCH >ARP6UPR0206AA

Face Cutter

ARP_INCH
（Round insert cutter for difficult-to-cut materials）

ARP6UPR0206AA EDP:10527337

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
ARP
  • High runout accuracy when indexing inserts.
  • Solid clamping system.
  • Standardized stock of extra fine pitch.

ARP_MM
  • High runout accuracy when indexing inserts.
  • Solid clamping system.
  • Standardized stock of extra fine pitch.


Product Information

  • High runout accuracy when indexing inserts.
  • Solid clamping system.
  • Standardized stock of extra fine pitch.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

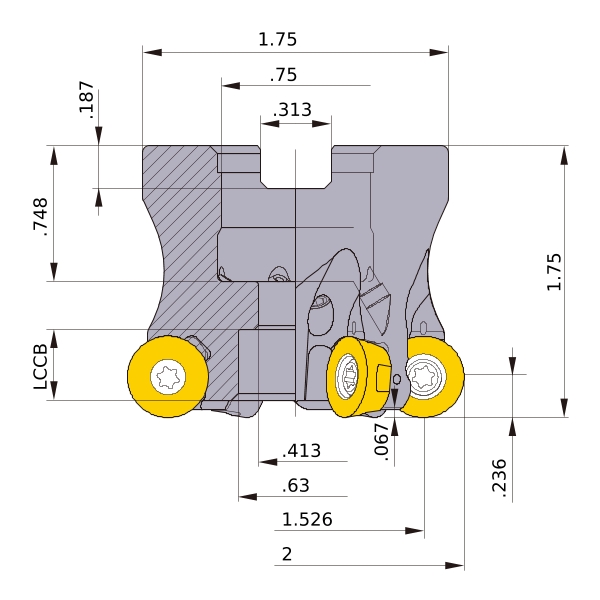

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
A1 .079
AZ .067
DC 1.526
DCX 2
DCON .75
DCSFMS 1.75
DAH .413
DCCB .63
RMPX 2.8°
L8 .187
LF 1.75
CBDP .748
KWW .313
APMX .236
GAMP +4°
GAMF -6°
WT 0.705
R 6
Peripheral effective cutting edge count: ZEFP 6
2D Model (DXF)
CAD data name Download
ARP6UPR0206AA
