Face Cutter >ARP_INCH >ARP6UPR0411EA

Face Cutter

ARP_INCH
（Round insert cutter for difficult-to-cut materials）

ARP6UPR0411EA EDP:10527399

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
ARP
  • High runout accuracy when indexing inserts.
  • Solid clamping system.
  • Standardized stock of extra fine pitch.

ARP_MM
  • High runout accuracy when indexing inserts.
  • Solid clamping system.
  • Standardized stock of extra fine pitch.


Product Information

  • High runout accuracy when indexing inserts.
  • Solid clamping system.
  • Standardized stock of extra fine pitch.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock

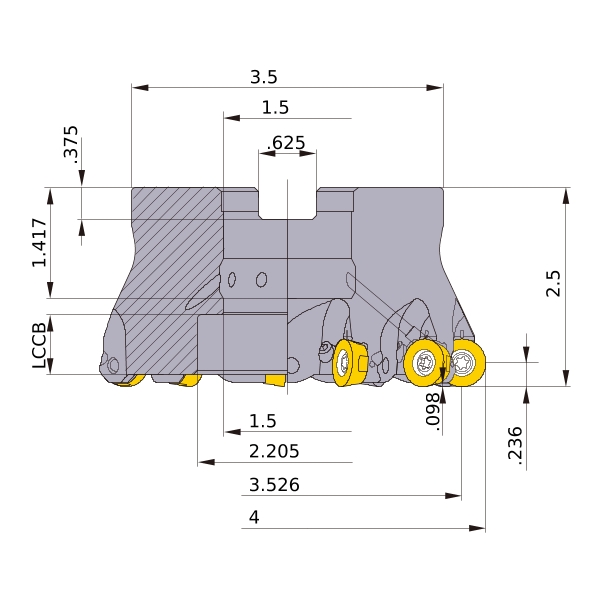

Unit of Length I
A1 .098
AZ .098
DC 3.526
DCX 4
DCON 1.5
DCSFMS 3.5
DAH 1.5
DCCB 2.205
RMPX 1.7°
L8 .375
LF 2.5
CBDP 1.417
KWW .625
APMX .236
GAMP +4°
GAMF -6°
WT 4.453
R 6
Peripheral effective cutting edge count: ZEFP 11
