Face Cutter

BXD4000_INCH
（ALUMINUM ALLOY FOR DIFFICULT-TO-CUT MATERIAL CUTTING）

BXD4000R2504B EDP:237403

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
AHX440S
  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.
AHX440S_MM
  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.

Product Information

  • Low resistance insert and high rigidity body.
  • The Anti Fly Insert mechanism guarantees secure high-revolution milling.
  • Air coolant through.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

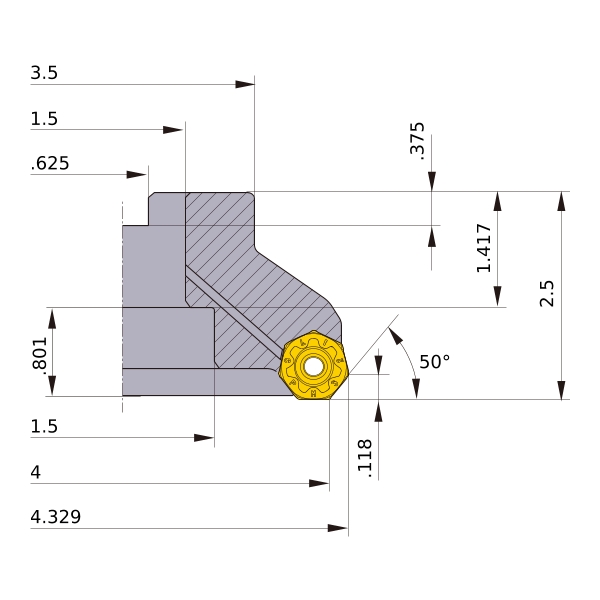

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DC 2.5
DCON .75
DAH .415
KAPR 90°
RMPX 5
L8 .188
LF 1.969
CBDP .748
KWW .313
APMX .591
GAMP +15°
GAMF +15°
Peripheral effective cutting edge count: ZEFP 4
RPMX 21000
2D Model (DXF)
CAD data name Download
AHX440SUR0407EA
CAD
