Face Cutter

FMAX_INCH
（HIGH FEED FINISHING）

FMAXUR0524E EDP:10552568

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
FMAX
  • Internal coolant and a special chip breaker wall (Body protector) provides ideal chip discharge performance.
  • Light Weight, High Rigidity Body
  • High precision, Easy setting
FMAX_COMPACT
  • For Compact and Smaller Machining Centers
  • Internal coolant and a special chip breaker wall (Body protector) provides ideal chip discharge performance.
  • Light Weight, High Rigidity Body
  • High precision, Easy setting
FMAX_MM
  • Internal coolant and a special chip breaker wall (Body protector) provides ideal chip discharge performance.
  • Light Weight, High Rigidity Body
  • High precision, Easy setting

Product Information

  • Internal coolant and a special chip breaker wall (Body protector) provides ideal chip discharge performance.
  • Light Weight, High Rigidity Body
  • High precision, Easy setting

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I

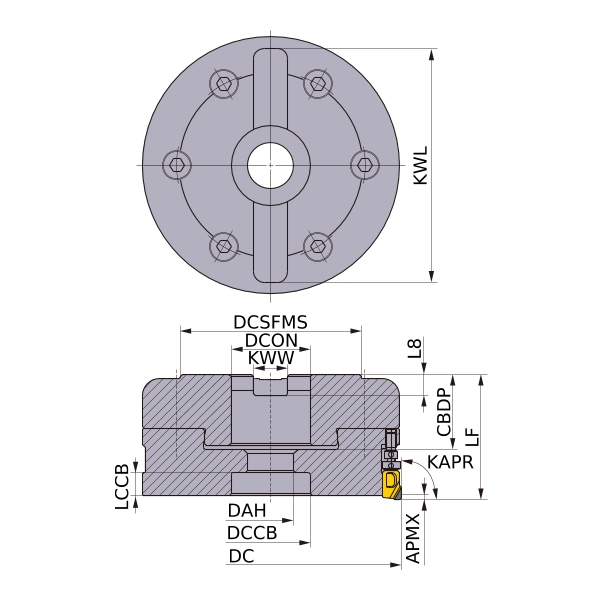

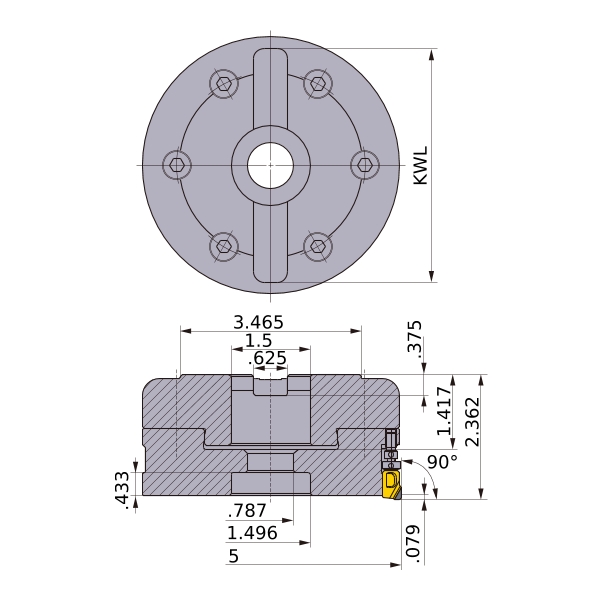

DC 5
DCON 1.5
DCSFMS 3.465
DAH .787
DCCB 1.496
KAPR 90°
L8 .375
LF 2.362
CBDP 1.417
LCCB .433
KWW .625
APMX .079
GAMP +5°
GAMF 0°
WT 7.5
Peripheral effective cutting edge count: ZEFP 24
RPMX 19600
