Face Cutter >VAS400_HALF_INCH >VAS400UA061414L1.00E

Face Cutter

VAS400_HALF_INCH
（Side Cutter）

VAS400UA061414L1.00E

Product Information

The actual product may differ from the displayed image.

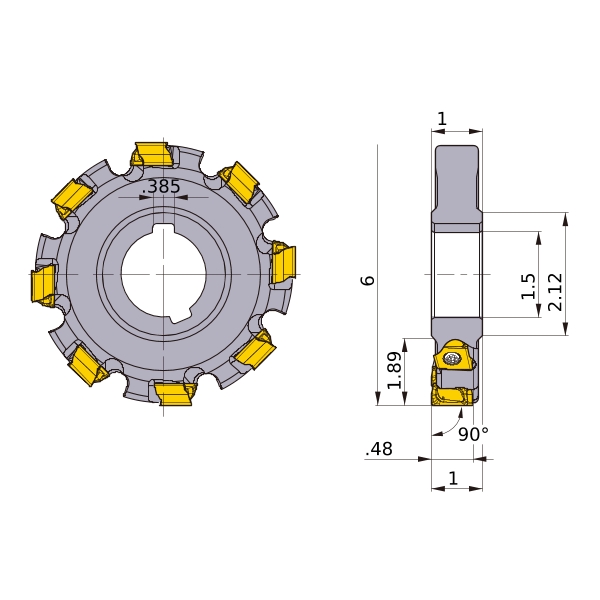

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand L
Stock
Unit of Length I
DC 6
DCON 1.5
DCSFMS 2.12
KAPR 90°
LF 1
OAL 1
CDX 1.89
KWW .385
APMX .48
GAMP +3°
GAMF +8°
Peripheral effective cutting edge count: ZEFP 14

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Insert for Rotating Tools
