Face Cutter >WJX_INCH >WJX14UR5.0007EA

Face Cutter

WJX_INCH
（Double-sided Insert Type High Feed Radius Milling Cutter）

WJX14UR5.0007EA EDP:10598016

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
WJX09
  • Double sided Z Geometry.
  • Smooth chip discharge.

WJX09_MM
  • Double sided Z Geometry.
  • Smooth chip discharge.

WJX14
  • Double sided Z Geometry.
  • Smooth chip discharge.

WJX14_MM
  • Double sided Z Geometry.
  • Smooth chip discharge.


Product Information

  • Double sided Z Geometry.
  • Smooth chip discharge.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

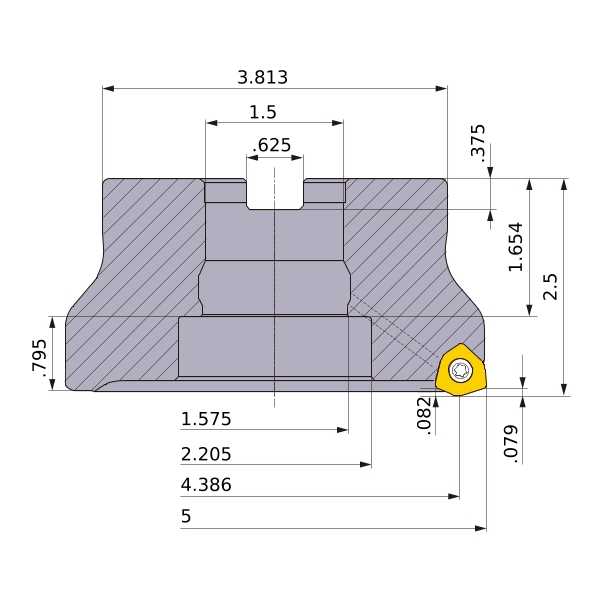

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
AZ .082
DC 4.386
DCX 5
DCON 1.5
DCSFMS 3.813
DAH 1.575
DCCB 2.205
RMPX 1.1°
L8 .375
LF 2.5
CBDP 1.654
LCCB .795
KWW .625
APMX .079
GAMP -6°
GAMF -10°
WT 7
Peripheral effective cutting edge count: ZEFP 7
RPMX 11500
3D Detail Model (STP,STL)
CAD data name Download
WJX14UR5_0007EA
CAD
Disclaimer
