Face Cutter >WJX_INCH >WJX14UR6.0009FA

Face Cutter

WJX_INCH
（Double-sided Insert Type High Feed Radius Milling Cutter）

WJX14UR6.0009FA EDP:10598030

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
WJX09
  • Double sided Z Geometry.
  • Smooth chip discharge.

WJX09_MM
  • Double sided Z Geometry.
  • Smooth chip discharge.

WJX14
  • Double sided Z Geometry.
  • Smooth chip discharge.

WJX14_MM
  • Double sided Z Geometry.
  • Smooth chip discharge.


Product Information

  • Double sided Z Geometry.
  • Smooth chip discharge.

The actual product may differ from the displayed image.

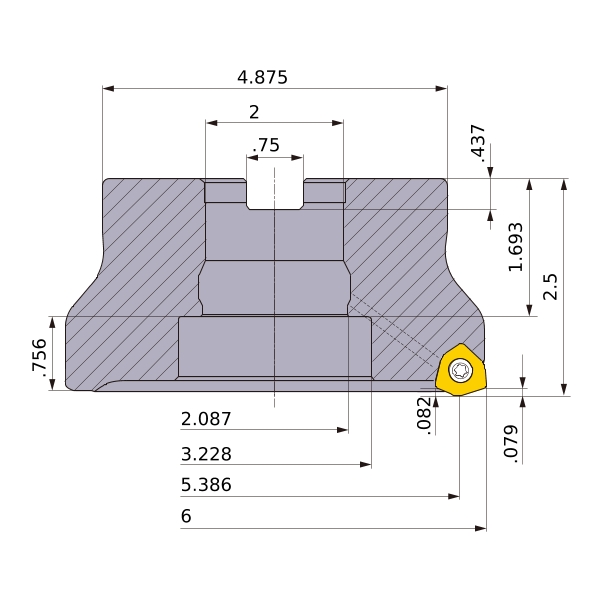

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
AZ .082
DC 5.386
DCX 6
DCON 2
DCSFMS 4.875
DAH 2.087
DCCB 3.228
RMPX 0.9°
L8 .437
LF 2.5
CBDP 1.693
LCCB .756
KWW .75
APMX .079
GAMP -6°
GAMF -10°
WT 10.3
Peripheral effective cutting edge count: ZEFP 9
RPMX 9900
