Face Cutter >WJX_INCH >WJX14UR2.0003AA
WJX_INCH
(Double-sided Insert Type High Feed Radius Milling Cutter)
The actual product may differ from the displayed image.

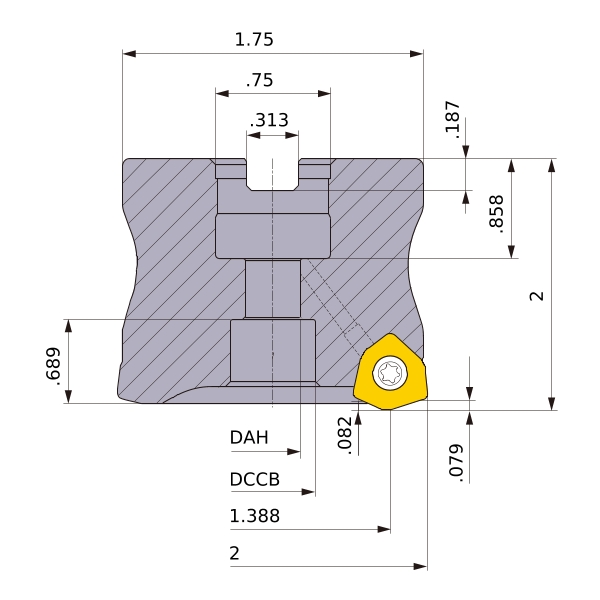

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Sales unit | 1 |
Hand | R |
Stock | |
Unit of Length | I |
AZ | .082 |
DC | 1.388 |
DCX | 2 |
DCON | .75 |
DCSFMS | 1.75 |
RMPX | 4.3° |
L8 | .187 |
LF | 2 |
CBDP | .858 |
LCCB | .689 |
KWW | .313 |
S11 | .335 |
APMX | .079 |
GAMP | -7° |
GAMF | -10° |
WT | 0.882 |
Peripheral effective cutting edge count: ZEFP | 3 |
RPMX | 5000 |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
