Face Cutter >VPX200_INCH >VPX200UR1.5004SA

Face Cutter

VPX200_INCH
(Multi-functional Cutter for High Efficiency Machining)

VPX200UR1.5004SA EDP:10597149

Product Information

  • By arranging the inserts tangentially, high holder rigidity is secured.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock

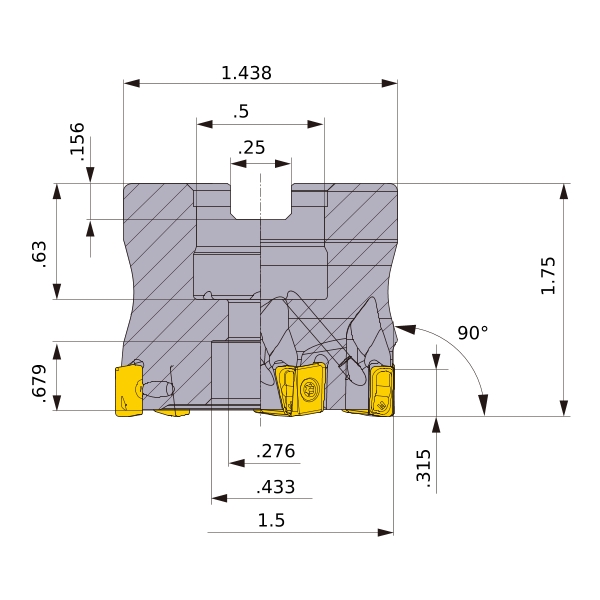

Unit of Length I
DC 1.5
DCON .5
DCSFMS 1.438
DAH .276
DCCB .433
KAPR 90°
RMPX 0.57°
L8 .156
LF 1.75
CBDP .63
LCCB .679
KWW .25
APMX .315
WT 0.26
Peripheral effective cutting edge count: ZEFP 4
RPMX 22600
2D Model (DXF)
CAD data name Download
VPX200UR1_5004SA
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
