Face Cutter >VPX200_INCH >VPX200UR1.5004AA

Face Cutter

VPX200_INCH
(Multi-functional Cutter for High Efficiency Machining)

VPX200UR1.5004AA EDP:10597163

Product Information

  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.

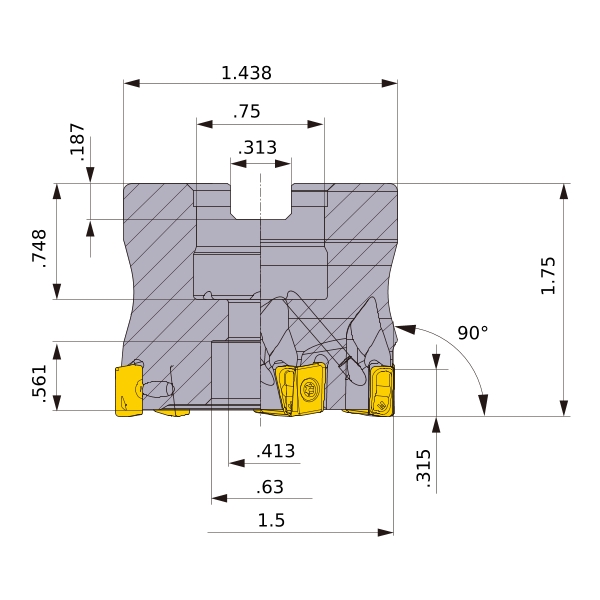

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I
DC 1.5
DCON .75
DCSFMS 1.438
DAH .413
DCCB .63
KAPR 90°
RMPX 0.57°
L8 .187
LF 1.75
CBDP .748
LCCB .561
KWW .313
APMX .315
WT 0.22
Cutting item count: CICT 4
Peripheral effective cutting edge count: ZEFP 4
Face effective cutting edge count: ZEFF 4
Effective Cutting Edge 4
RPMX 22600
2D Model (DXF)
CAD data name Download
VPX200UR1_5004AA
CAD

3D Detail Model (STP,STL)
CAD data name Download
VPX200UR1_5004AA
CAD

3D Light Model (STP,STL)
CAD data name RE Download
VPX200UR1_5004AA_IR0_008
.008 CAD
VPX200UR1_5004AA_IR0_016
.016 CAD
VPX200UR1_5004AA_IR0_031
.031 CAD
VPX200UR1_5004AA_IR0_039
.039 CAD
VPX200UR1_5004AA_IR0_047
.047 CAD
VPX200UR1_5004AA_IR0_063
.063 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
