Face Cutter >VPX200_INCH >VPX200UR2.5006CA

Face Cutter

VPX200_INCH
(Multi-functional Cutter for High Efficiency Machining)

VPX200UR2.5006CA EDP:10597200

Product Information

  • By arranging the inserts tangentially, high holder rigidity is secured.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock

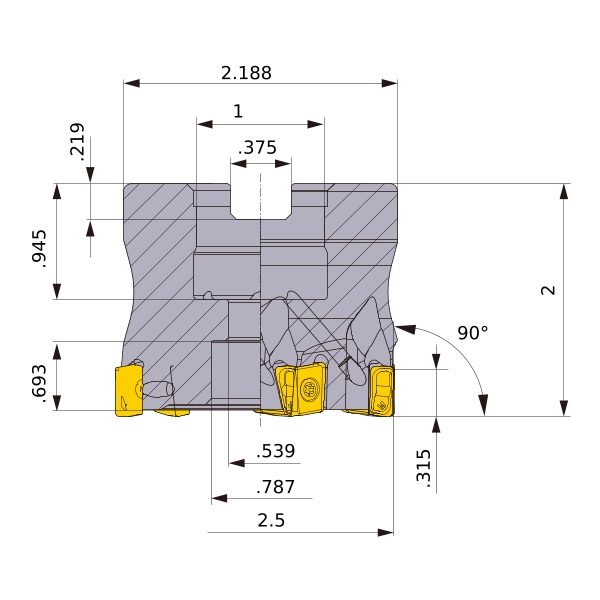

Unit of Length I
DC 2.5
DCON 1
DCSFMS 2.188
DAH .539
DCCB .787
KAPR 90°
RMPX 0.32°
L8 .219
LF 2
CBDP .945
LCCB .693
KWW .375
APMX .315
WT 0.74
Peripheral effective cutting edge count: ZEFP 6
RPMX 16700
2D Model (DXF)
CAD data name Download
VPX200UR2_5006CA
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
