Face Cutter >VPX300_INCH >VPX300UR1.5003SA

Face Cutter

VPX300_INCH
（Multi-functional Cutter for High Efficiency Machining）

VPX300UR1.5003SA EDP:10597040

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
VPX300
  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.
VPX300_MM
  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.

Product Information

  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.

The actual product may differ from the displayed image.

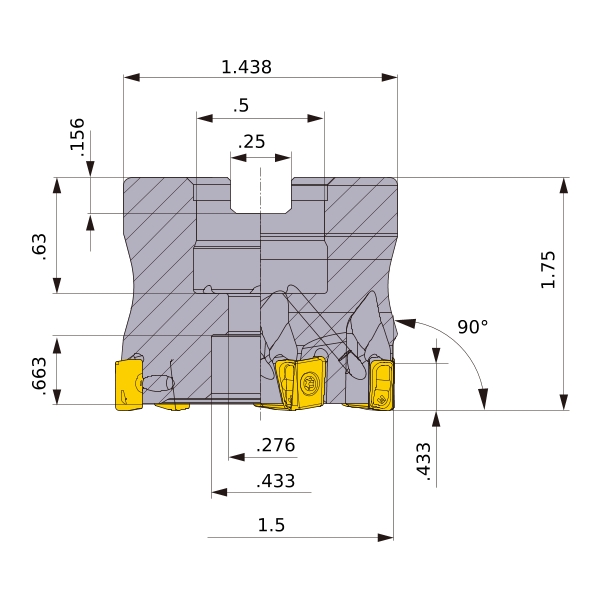

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DC 1.5
DCON .5
DCSFMS 1.438
DAH .276
DCCB .433
KAPR 90°
RMPX 1.13°
L8 .156
LF 1.75
CBDP .63
LCCB .663
KWW .25
APMX .433
WT 0.24
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
Face effective cutting edge count: ZEFF 3
Effective Cutting Edge 3
RPMX 18500
2D Model (DXF)
CAD data name Download
VPX300UR1_5003SA
CAD
