Face Cutter >VPX300_INCH >VPX300UR2.0004AA

Face Cutter

VPX300_INCH
（Multi-functional Cutter for High Efficiency Machining）

VPX300UR2.0004AA EDP:10597064

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
VPX300
  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.
VPX300_MM
  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.

Product Information

  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

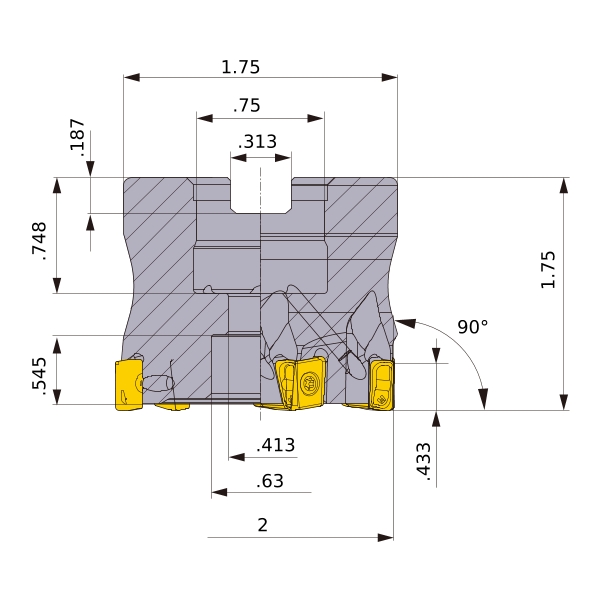

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DC 2
DCON .75
DCSFMS 1.75
DAH .413
DCCB .63
KAPR 90°
RMPX 0.78°
L8 .187
LF 1.75
CBDP .748
LCCB .545
KWW .313
APMX .433
WT 0.4
Cutting item count: CICT 4
Peripheral effective cutting edge count: ZEFP 4
Face effective cutting edge count: ZEFF 4
Effective Cutting Edge 4
RPMX 15400
