Face Cutter >WWX400_INCH >WWX400UR2.5004CA

Face Cutter

WWX400_INCH
（Double sided Insert Type Shoulder Mill）

WWX400UR2.5004CA EDP:10614716

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
WWX400
  • Econimical double sided insert with 6 corners.
  • The insert thickness was greatly increased to markedly improve the fracture resistance.
  • High-stability clamping and high-quality machining.
WWX400_MM
  • Econimical double sided insert with 6 corners.
  • The insert thickness was greatly increased to markedly improve the fracture resistance.
  • High-stability clamping and high-quality machining.
  • The milling cutter with cutting diameter DC = 50 mm has a built-in set bolt.

Product Information

  • Econimical double sided insert with 6 corners.
  • The insert thickness was greatly increased to markedly improve the fracture resistance.
  • High-stability clamping and high-quality machining.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock

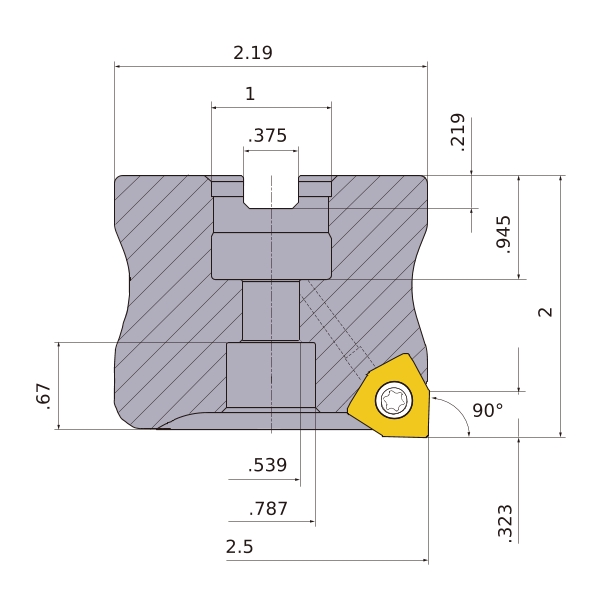

Unit of Length I
DC 2.5
DCON 1
DCSFMS 2.19
DAH .539
DCCB .787
KAPR 90°
RMPX 0.26
L8 .219
LF 2
CBDP .945
LCCB .67
KWW .375
APMX .323
GAMP -6°
GAMF -11°
WT 1.5
Cutting item count: CICT 4
RPMX 14000
