Face Cutter >WWX400_INCH >WWX400UR8.0012MN

Face Cutter

WWX400_INCH
（Double sided Insert Type Shoulder Mill）

WWX400UR8.0012MN EDP:10614860

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
WWX400
  • Econimical double sided insert with 6 corners.
  • The insert thickness was greatly increased to markedly improve the fracture resistance.
  • High-stability clamping and high-quality machining.
WWX400_MM
  • Econimical double sided insert with 6 corners.
  • The insert thickness was greatly increased to markedly improve the fracture resistance.
  • High-stability clamping and high-quality machining.
  • The milling cutter with cutting diameter DC = 50 mm has a built-in set bolt.

Product Information

  • Econimical double sided insert with 6 corners.
  • The insert thickness was greatly increased to markedly improve the fracture resistance.
  • High-stability clamping and high-quality machining.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

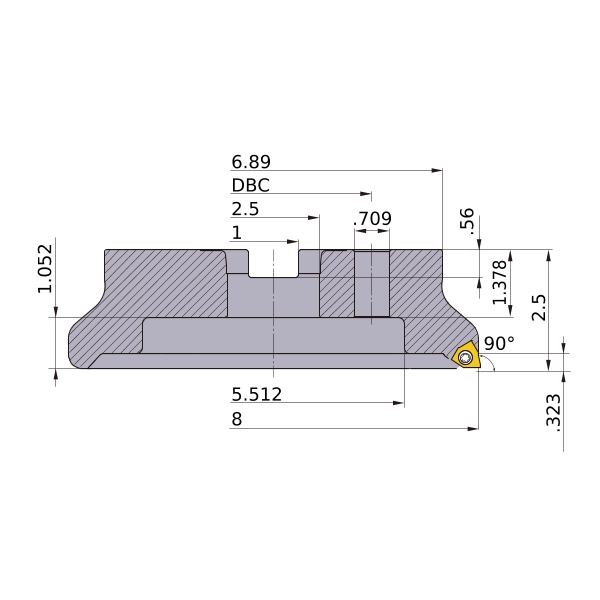

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DC 8
DCON 2.5
DCSFMS 6.89
DAH .709
DCCB 5.512
KAPR 90°
L8 .56
LF 2.5
CBDP 1.378
LCCB 1.052
KWW 1
APMX .323
GAMP -6°
GAMF -7.2°
WT 17.2
Cutting item count: CICT 12
RPMX 7200
2D Model (DXF)
CAD data name Download
WWX400UR8_0012MN
CAD
