Face Cutter >WJX09_INCH >WJX09UR2.0004AA

Face Cutter

WJX09_INCH
（Double-sided Insert Type High Feed Radius Milling Cutter）

WJX09UR2.0004AA EDP:10618516

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
WJX09
  • Double sided Z Geometry.
  • Smooth chip discharge.

WJX09_MM
  • Double sided Z Geometry.
  • Smooth chip discharge.


Product Information

  • Double sided Z Geometry.
  • Smooth chip discharge.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock

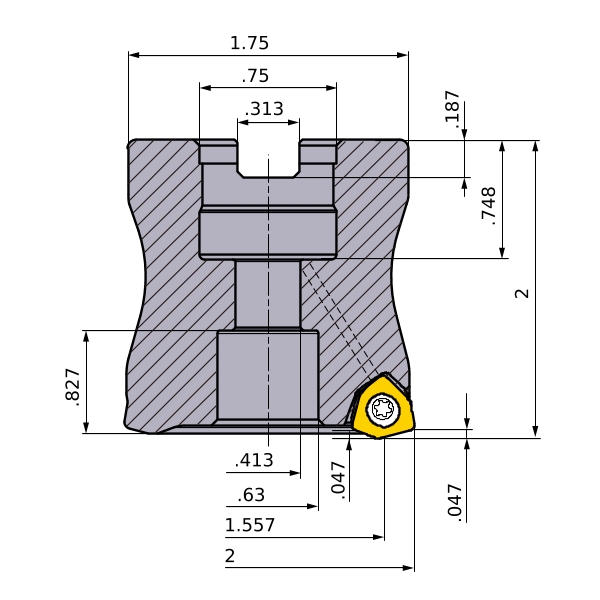

Unit of Length I
AZ .047
DC 1.557
DCX 2
DCON .75
DCSFMS 1.75
DAH .413
DCCB .63
RMPX 2°
L8 .187
LF 2
CBDP .748
LCCB .827
KWW .313
APMX .047
GAMP -6°
GAMF -10°
WT 0.9
Cutting item count: CICT 4
Peripheral effective cutting edge count: ZEFP 4
RPMX 19800
