Face Cutter >WWX200_INCH >WWX200UR1.5004SA

Face Cutter

WWX200_INCH
（Double sided Insert Type Shoulder Mill）

WWX200UR1.5004SA EDP:22863881

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
WWX200
  • Econimical double sided insert with 6 corners.
  • The insert thickness was greatly increased to markedly improve the fracture resistance.
  • High-stability clamping and high-quality machining.
WWX200_MM
  • Econimical double sided insert with 6 corners.
  • The insert thickness was greatly increased to markedly improve the fracture resistance.
  • High-stability clamping and high-quality machining.

Product Information

  • Econimical double sided insert with 6 corners.
  • The insert thickness was greatly increased to markedly improve the fracture resistance.
  • High-stability clamping and high-quality machining.

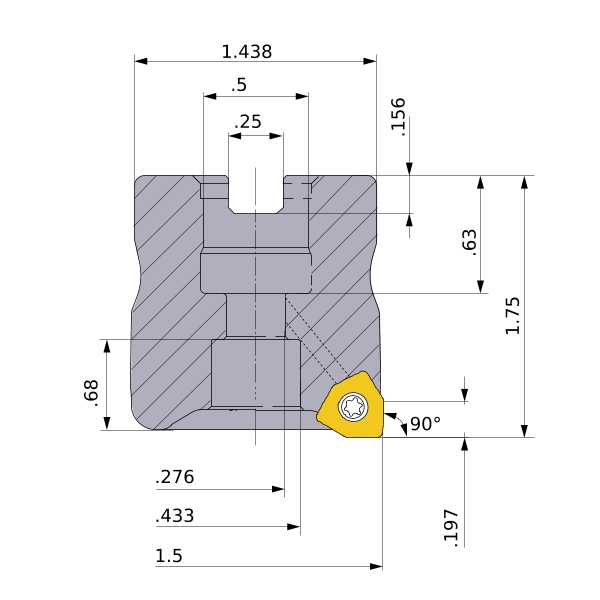

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DC 1.5
DCON .5
DCSFMS 1.438
DAH .276
DCCB .433
KAPR 90°
L8 .156
LF 1.75
CBDP .63
LCCB .68
KWW .25
APMX .197
GAMP -6°
GAMF -13°
WT 0.5
Cutting item count: CICT 4
Peripheral effective cutting edge count: ZEFP 4
RPMX 21600
