Face Cutter >WWX200_INCH >WWX200UR3.0009CA

Face Cutter

WWX200_INCH
（Double sided Insert Type Shoulder Mill）

WWX200UR3.0009CA EDP:22864185

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
WWX200
  • Econimical double sided insert with 6 corners.
  • The insert thickness was greatly increased to markedly improve the fracture resistance.
  • High-stability clamping and high-quality machining.
WWX200_MM
  • Econimical double sided insert with 6 corners.
  • The insert thickness was greatly increased to markedly improve the fracture resistance.
  • High-stability clamping and high-quality machining.

Product Information

  • Econimical double sided insert with 6 corners.
  • The insert thickness was greatly increased to markedly improve the fracture resistance.
  • High-stability clamping and high-quality machining.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DC 3
DCON 1

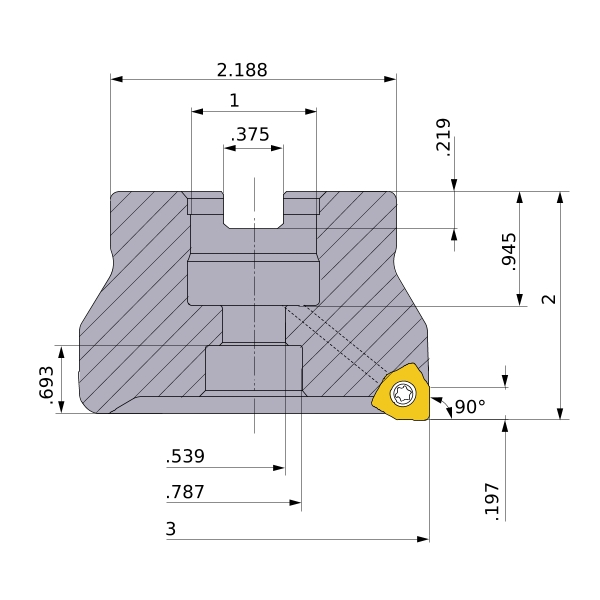

DCSFMS 2.188
DAH .539
DCCB .787
KAPR 90°
L8 .219
LF 2
CBDP .945
LCCB .693
KWW .375
APMX .197
GAMP -6°
GAMF -12°
WT 2.1
Cutting item count: CICT 9
Peripheral effective cutting edge count: ZEFP 9
RPMX 13600
