Face Cutter >WWX200_INCH >WWX200UR4.0008EA

Face Cutter

WWX200_INCH
（Double sided Insert Type Shoulder Mill）

WWX200UR4.0008EA EDP:22864246

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
WWX200
  • Econimical double sided insert with 6 corners.
  • The insert thickness was greatly increased to markedly improve the fracture resistance.
  • High-stability clamping and high-quality machining.
WWX200_MM
  • Econimical double sided insert with 6 corners.
  • The insert thickness was greatly increased to markedly improve the fracture resistance.
  • High-stability clamping and high-quality machining.

Product Information

  • Econimical double sided insert with 6 corners.
  • The insert thickness was greatly increased to markedly improve the fracture resistance.
  • High-stability clamping and high-quality machining.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

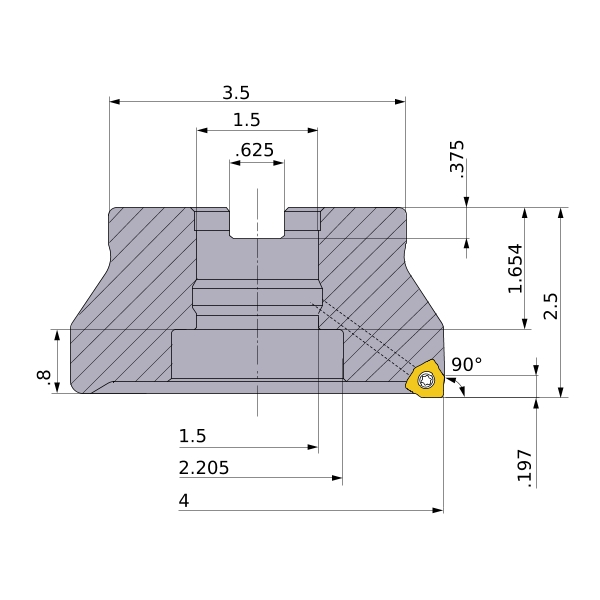

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DC 4
DCON 1.5
DCSFMS 3.5
DAH 1.5
DCCB 2.205
KAPR 90°
L8 .375
LF 2.5
CBDP 1.654
LCCB .8
KWW .625
APMX .197
GAMP -6°
GAMF -12°
WT 5
Cutting item count: CICT 8
Peripheral effective cutting edge count: ZEFP 8
RPMX 11700
2D Model (DXF)
CAD data name Download
WWX200UR4_0008EA
