Grooving Others

CTAH_INCH


CTAHL-062 EDP:337447

METRIC Products
Shape Series Tooling Sheet Feature
CTAH
  • Due tu the design of handed tool holders,able to minimize accumulation of workpieces.
  • For gang type tool posts.
CTAH-S
  • For gang type tool posts.
  • Due tu the design of handed tool holders,able to minimize accumulation of workpieces.

Product Information

  • Due tu the design of handed tool holders,able to minimize accumulation of workpieces.
  • For gang type tool posts.

The actual product may differ from the displayed image.

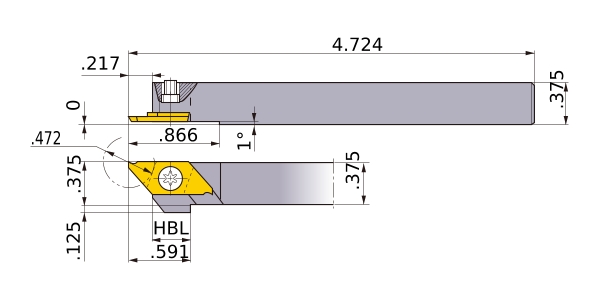

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI CTAHL062BX
Sales unit 1
Hand L
Stock
Unit of Length I
CUTDIA .472
B .375
LF 4.724
LH .591
CDX .217
H .375
HF .375
HBH .125
S10 .866
Peripheral effective cutting edge count: ZEFP 1
2D Model (DXF)
CAD data name Download
CTAHL-062
